-45%

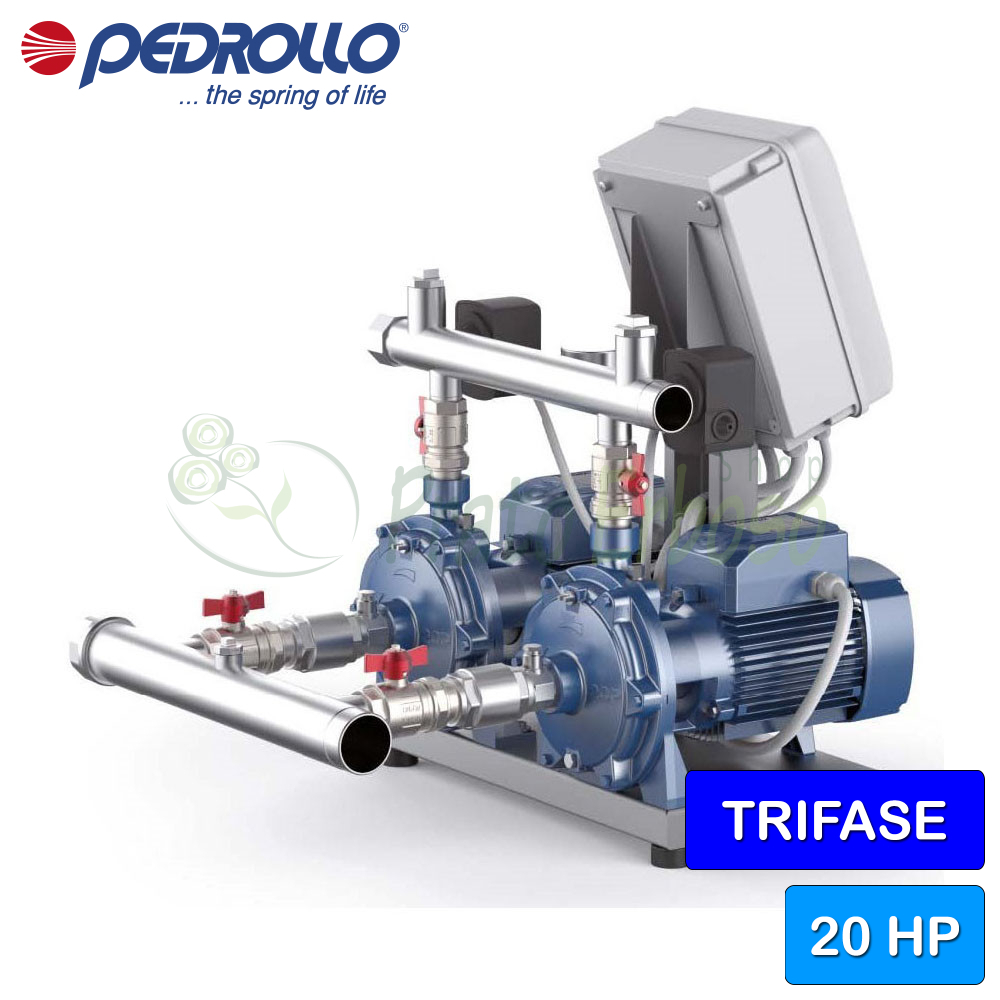

CB2 - 2CP 32/210A - 2x10 HP three-phase pressure booster set

2 THREE-PHASE ELECTRIC PUMPS.

2 x 7.5 kW (2 x 10 HP) motor. Flow rate up to 440 l/min (26.4 m³/h). Head up to 112 m.

€3,079.22 Tax included

2523.95 Tax excluded

€5,598.58-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - 2CP 32/210A - 2x10 HP three-phase pressure booster set
  • Use dot instead of comma

Loading

Description

The CB2 - 2CP 32/210A pressure group from the CB2-CP series by Pedrollo allows for optimal management of the system's water needs.

Made up of 2 electric pumps that start automatically based on the system's needs.

Recommended for agricultural, civil, industrial and domestic installations.

Suitable for residential and commercial water supply activities, irrigation of large gardens, sports fields and agricultural crops.

Using the CB2 - 2CP 32/210A pressure group allows for considerable water and energy savings.

Data sheet
Brand Pedrollo
Reference CB2 - 2CP 32/210A
In stock 9 Items
Motor connection
THREE-PHASE
Power (Kw)
15
Power (HP)
20
Current consumption at 400V (A)
32
Suction mouth
3"
Delivery mouth
2"
Minimum flow rate (l./min.)
80
Max. flow rate (l./min.)
500
Min. head (m.)
74
Max. head (m.)
112
Height (cm)
98.7
Width (cm)
70
Depth (cm)
68.8
Weight (Kg)
156
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - 2CP models and performances

GUY
Three-phase
CB2 - 2CP 25/14B
CB2 - 2CP 25/16C
CB2 - 2CP 25/16B
CB2 - 2CP 25/16A
CB2 - 2CP 32/200C
CB2 - 2CP 32/200B
CB2 - 2CP 32/210B
CB2 - 2CP 32/210A
CB2 - 2CP 40/180C
CB2 - 2CP 40/180B
CB2 - 2CP 40/180A
POWER
KWHP
2x1.12x1.5
2x1.12x1.5
2x1.52x2
2x2.22x3
2x32x4
2x42x5.5
2x5.52x7.5
2x7.52x10
2x42x5.5
2x5.52x7.5
2x7.52x10
