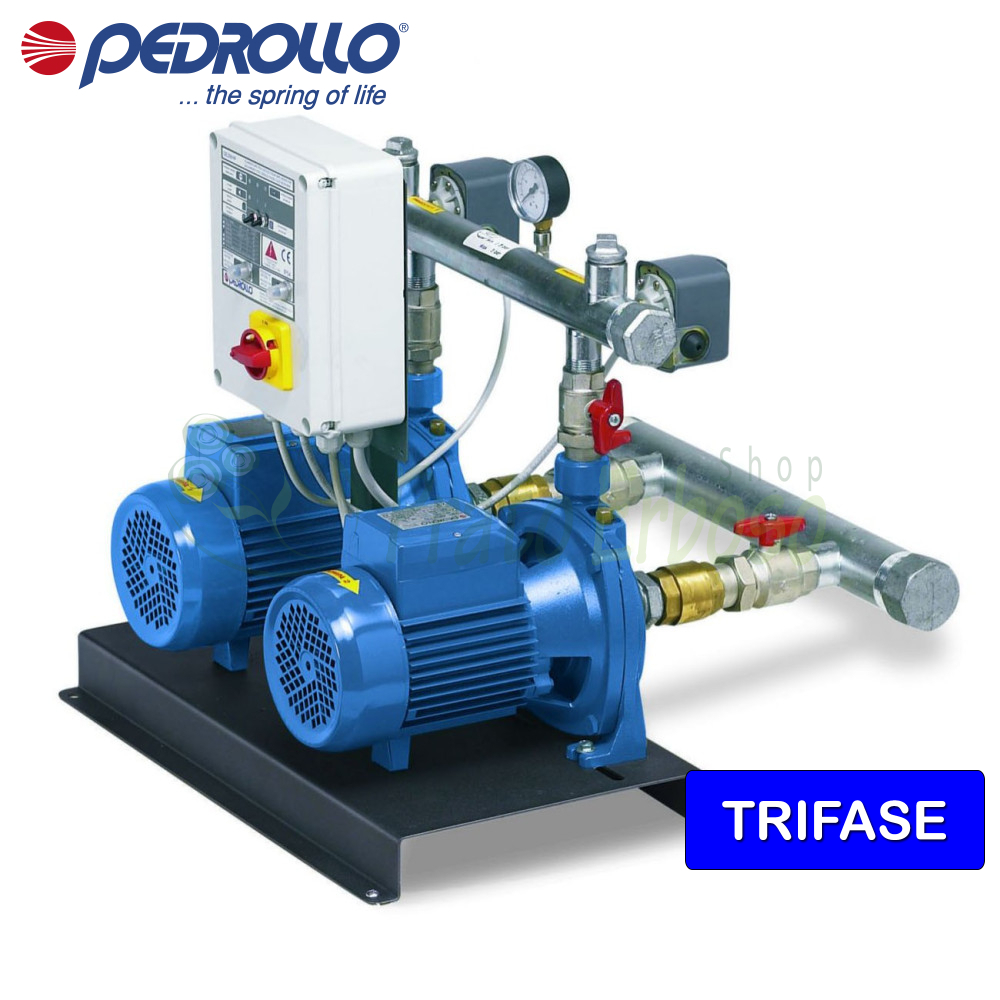

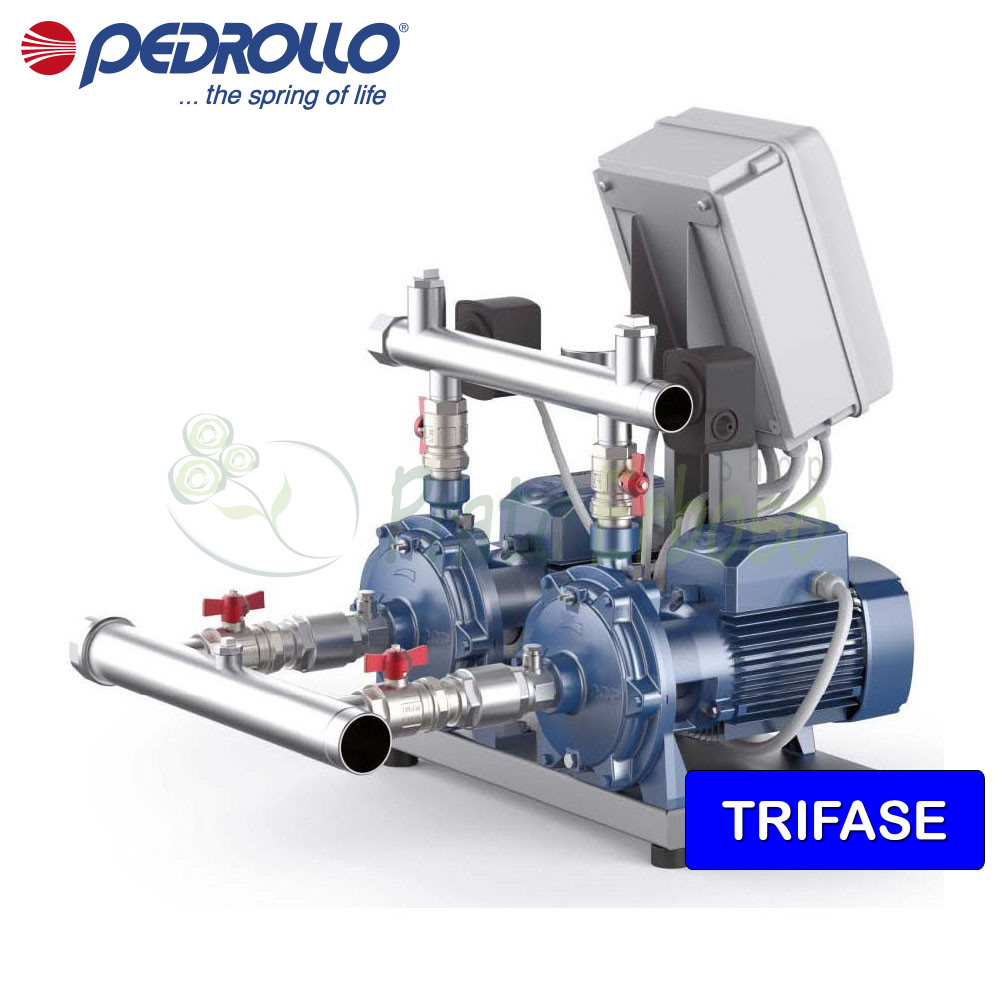

CB2 - 2CP 32/200B - Three-phase pressure group 2x5.5 HP
2 THREE-PHASE ELECTRIC PUMPS.
2 x 4 kW (2 x 5.5 HP) motors. Flow rate up to 445 l/min (27.6 m³/h). Head up to 85 m.
The CB2 - 2CP 32/200B pressure group from the CB2-CP series by Pedrollo is suitable for pumping clean water and chemically non-aggressive liquids for the components.
Consisting of 2 electric pumps suitable for water supply and pressurization.
Recommended for agricultural, civil, domestic and industrial installations.
The CB2 - 2CP 32/200B pressure group is set up in such a way that one or both electric pumps start up at each increase in demand.
Its use allows for good flexibility in system management and considerable water and energy savings.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 8
- Power (HP)
- 11
- Current consumption at 400V (A)
- 22
- Suction mouth
- 3"
- Delivery mouth
- 2"
- Minimum flow rate (l./min.)
- 800
- Max. flow rate (l./min.)
- 500
- Min. head (m.)
- 49
- Max. head (m.)
- 85
- Height (cm)
- 98.2
- Width (cm)
- 70
- Depth (cm)
- 68.8
- Weight (Kg)
- 118
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
