CB2 - MK 8/6 - 2x3 HP three-phase pressure group

2 THREE-PHASE ELECTRIC PUMPS.

2 x 2.2 kW (2 x 3 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 86 m.

€2,191.49 Tax included

1796.3 Tax excluded

€3,984.52-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - MK 8/6 - 2x3 HP three-phase pressure group
  • Use dot instead of comma

Loading

Description

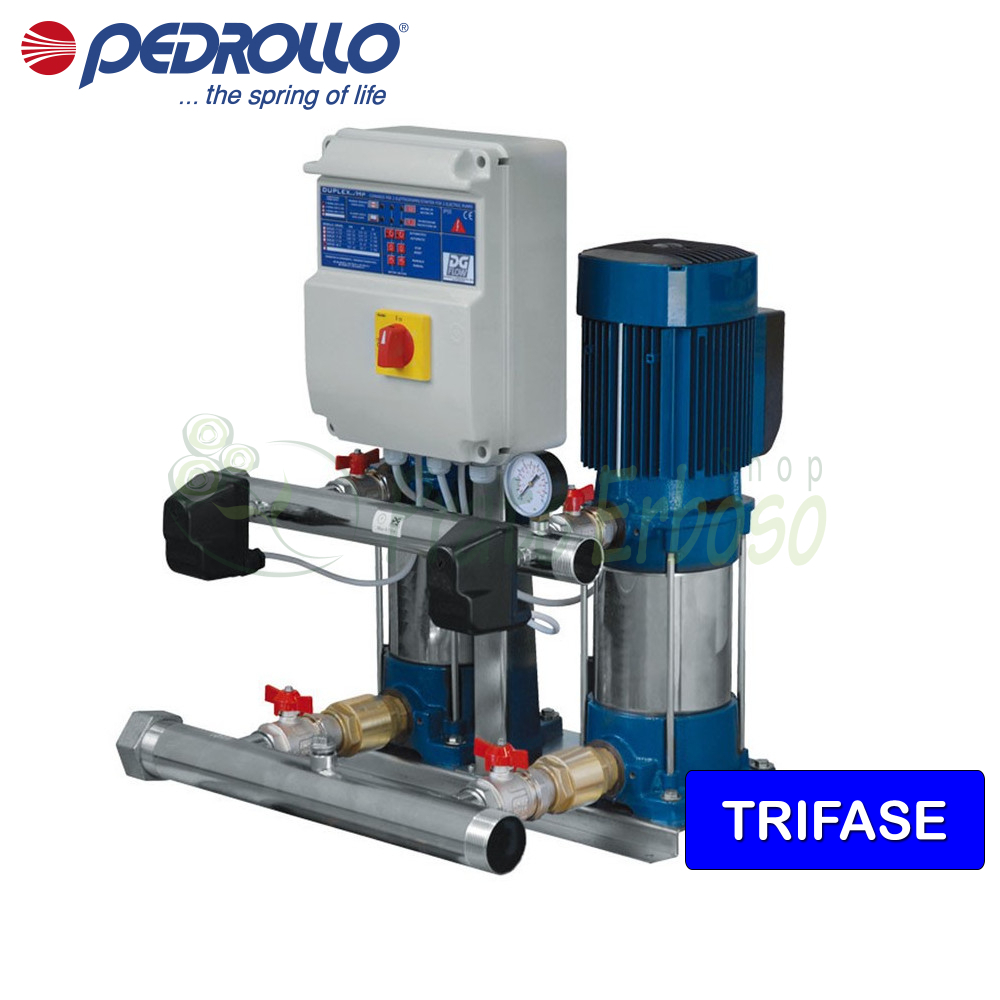

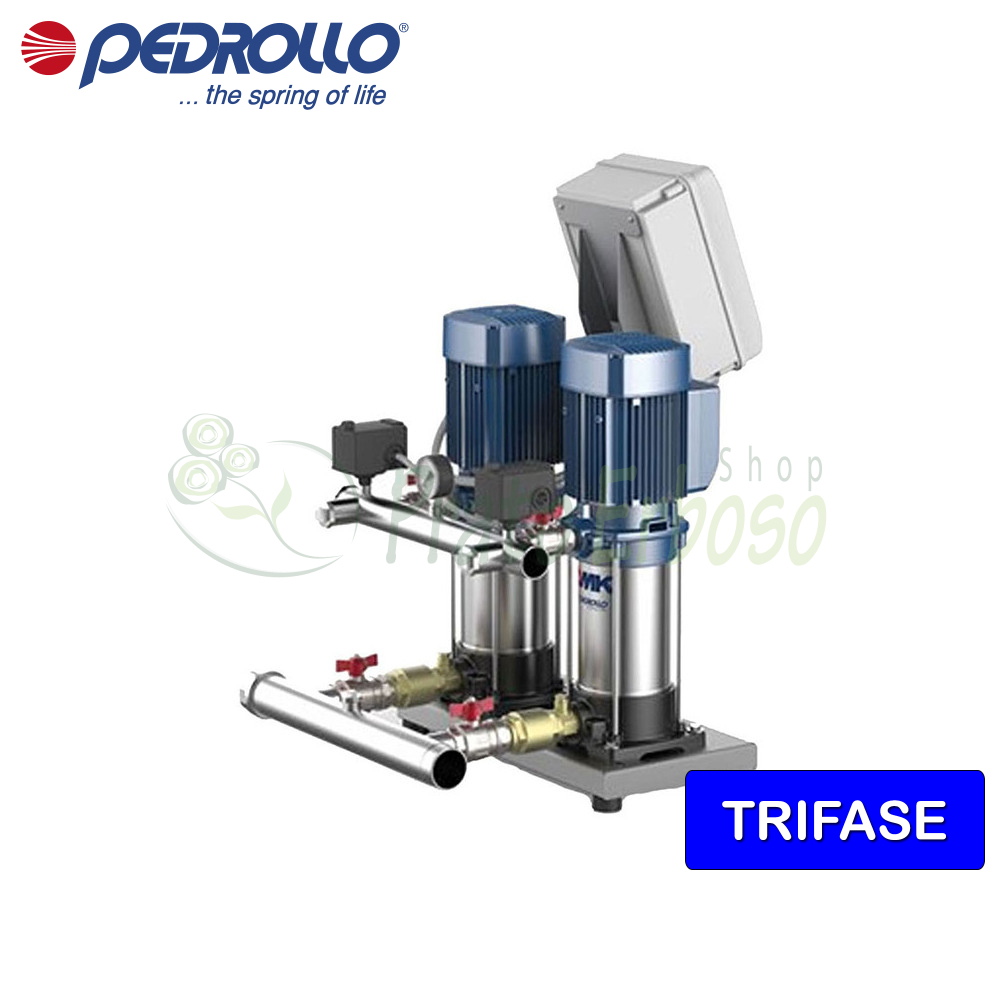

The CB2 - MK 8/6 pressure group from the CB2-CP series by Pedrollo is a pressurization system composed of 2 electric pumps.

Set up so that one or both pumps start automatically at each increase in demand.

The electronic circuit in the control panel allows the pumps to be automatically switched at each start or stop cycle.

Suitable for residential and commercial water supply activities, irrigation of large gardens, sports fields and agricultural crops.

The CB2 - MK 8/6 pressure group includes 2 MK 8/6 electric pumps, a base, a pressure switch and an electronic panel.

Data sheet
Brand Pedrollo
Reference CB2 - MK 8/6
In stock 8 Items
Motor connection
THREE-PHASE
Power (Kw)
4.4
Power (HP)
6
Current consumption at 400V (A)
10
Suction mouth
2" 1/2
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
20
Max. flow rate (l./min.)
360
Min. head (m.)
20
Max. head (m.)
86
Height (cm)
74.2
Width (cm)
53
Depth (cm)
86.8
Weight (Kg)
68
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - MK models and performances

GUY
single phase
CB2 - MK 3/3
CB2 - MK 3/5
CB2 - MK 3/6
CB2 - MK 5/4
CB2 - MK 5/5
CB2 - MK 5/7
CB2 - MK 5/8
CB2 - MK 8/4
CB2 - MK 8/5
CB2 - MK 8/6
POWER
KWHP
2x0.752x1
2x1.12x1.5
2x1.52x2
2x1.12x1.5
2x1.12x1.5
2x1.82x2.5
2x2.22x3
2x1.52x2
2x1.82x2.5
2x2.22x3
