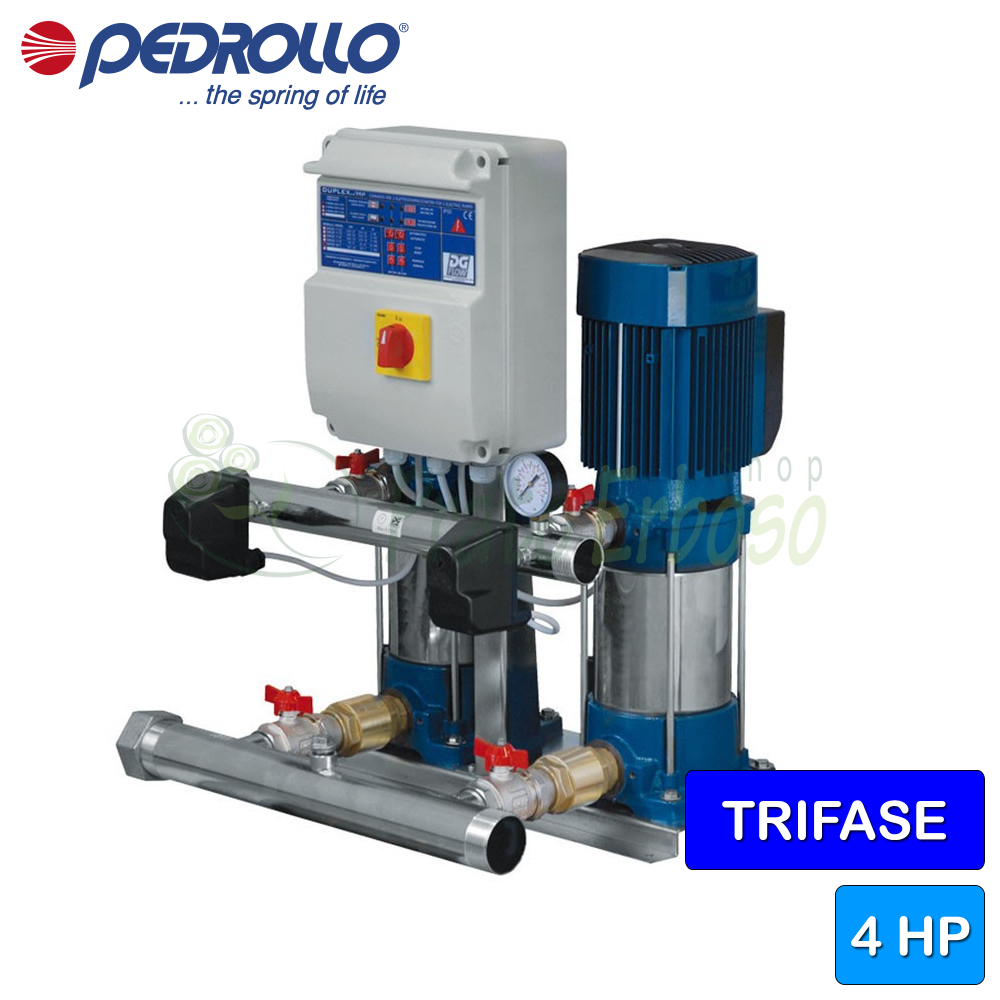

CB2 - MK 8/5 - 2x2 HP three-phase pressure group
2 THREE-PHASE ELECTRIC PUMPS.
2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 70 m.
The CB2 - MK 8/5 pressure group from the CB2-CP series by Pedrollo allows for optimal management of the system's water needs.
Made up of 2 electric pumps that start automatically based on the system's needs.
Recommended for agricultural, civil, industrial and domestic installations.
Suitable for residential and commercial water supply activities, irrigation of large gardens, sports fields and agricultural crops.
The use of the CB2 - MK 8/5 pressure group allows for considerable water and energy savings.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3.6
- Power (HP)
- 4
- Current consumption at 400V (A)
- 7
- Suction mouth
- 2" 1/2
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 360
- Min. head (m.)
- 18
- Max. head (m.)
- 70
- Height (cm)
- 74.2
- Width (cm)
- 53
- Depth (cm)
- 86.8
- Weight (Kg)
- 68
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 CB2 - MK 8/5 - 2x2 HP three-phase pressure groupThis product 2 THREE-PHASE ELECTRIC PUMPS. 2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 70 m. |  CB2 - MK 8/4 - 2x2 HP three-phase pressure group 2 THREE-PHASE ELECTRIC PUMPS. 2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 56 m. |  CB2 - MK 8/6 - 2x3 HP three-phase pressure group 2 THREE-PHASE ELECTRIC PUMPS. 2 x 2.2 kW (2 x 3 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 86 m. | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price | Price €3,868.62 -45% €2,127.74
| Price €3,791.76 -45% €2,085.47
| Price €3,984.52 -45% €2,191.49
| ||||||||||||||||||||||||
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | ||||||||||||||||||||||||
| Power (Kw) | Power (Kw) 3.6 | Power (Kw) 3 | Power (Kw) 4.4 | ||||||||||||||||||||||||
| Power (HP) | Power (HP) 4 | Power (HP) 4 | Power (HP) 6 | ||||||||||||||||||||||||
| Current consumption at 400V (A) | Current consumption at 400V (A) 7 | Current consumption at 400V (A) 6 | Current consumption at 400V (A) 10 | ||||||||||||||||||||||||
| Suction mouth | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | ||||||||||||||||||||||||
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | ||||||||||||||||||||||||
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 1020 | Minimum flow rate (l./min.) 20 | ||||||||||||||||||||||||
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 360 | Max. flow rate (l./min.) 360 | Max. flow rate (l./min.) 360 | ||||||||||||||||||||||||
| Min. head (m.) | Min. head (m.) 18 | Min. head (m.) 15 | Min. head (m.) 20 | ||||||||||||||||||||||||
| Max. head (m.) | Max. head (m.) 70 | Max. head (m.) 56 | Max. head (m.) 86 | ||||||||||||||||||||||||
| Height (cm) | Height (cm) 74.2 | Height (cm) 74.2 | Height (cm) 74.2 | ||||||||||||||||||||||||
| Width (cm) | Width (cm) 53 | Width (cm) 53 | Width (cm) 53 | ||||||||||||||||||||||||
| Depth (cm) | Depth (cm) 86.8 | Depth (cm) 86.8 | Depth (cm) 86.8 | ||||||||||||||||||||||||
| Weight (Kg) | Weight (Kg) 68 | Weight (Kg) 65 | Weight (Kg) 68 | ||||||||||||||||||||||||
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
