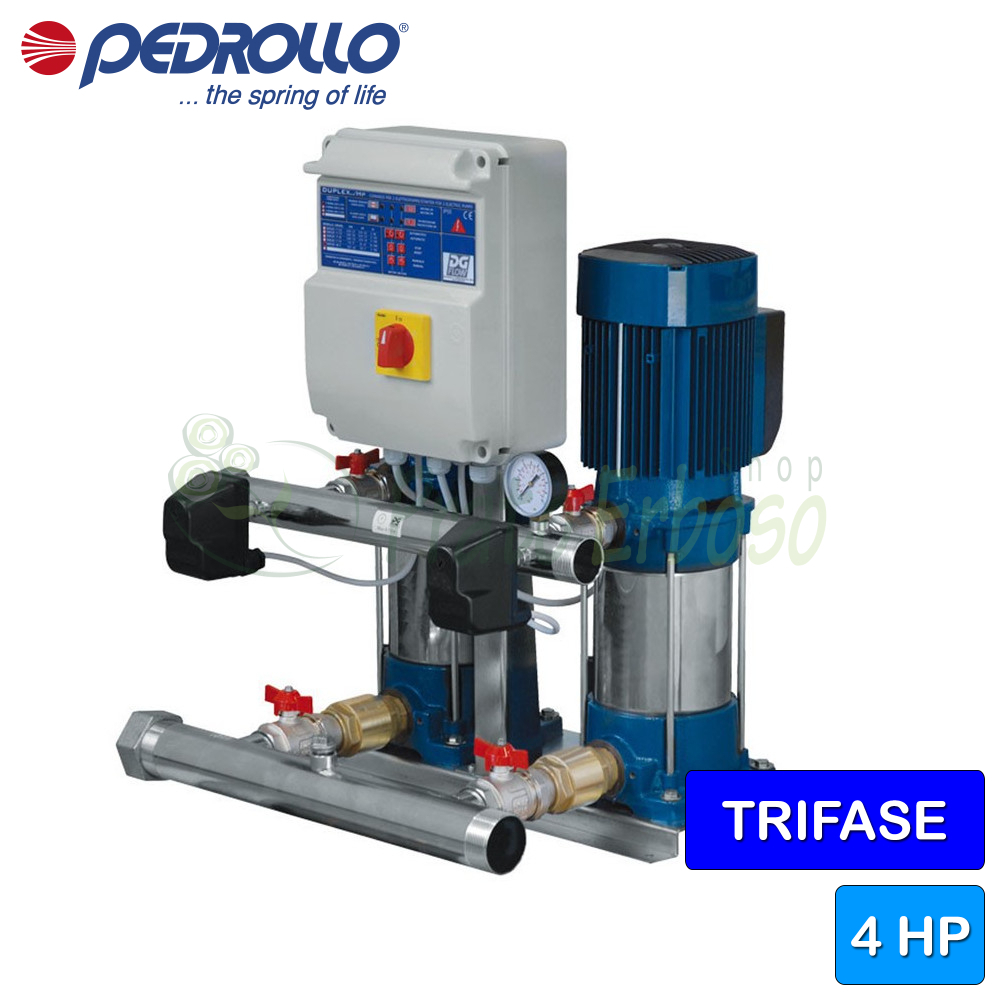

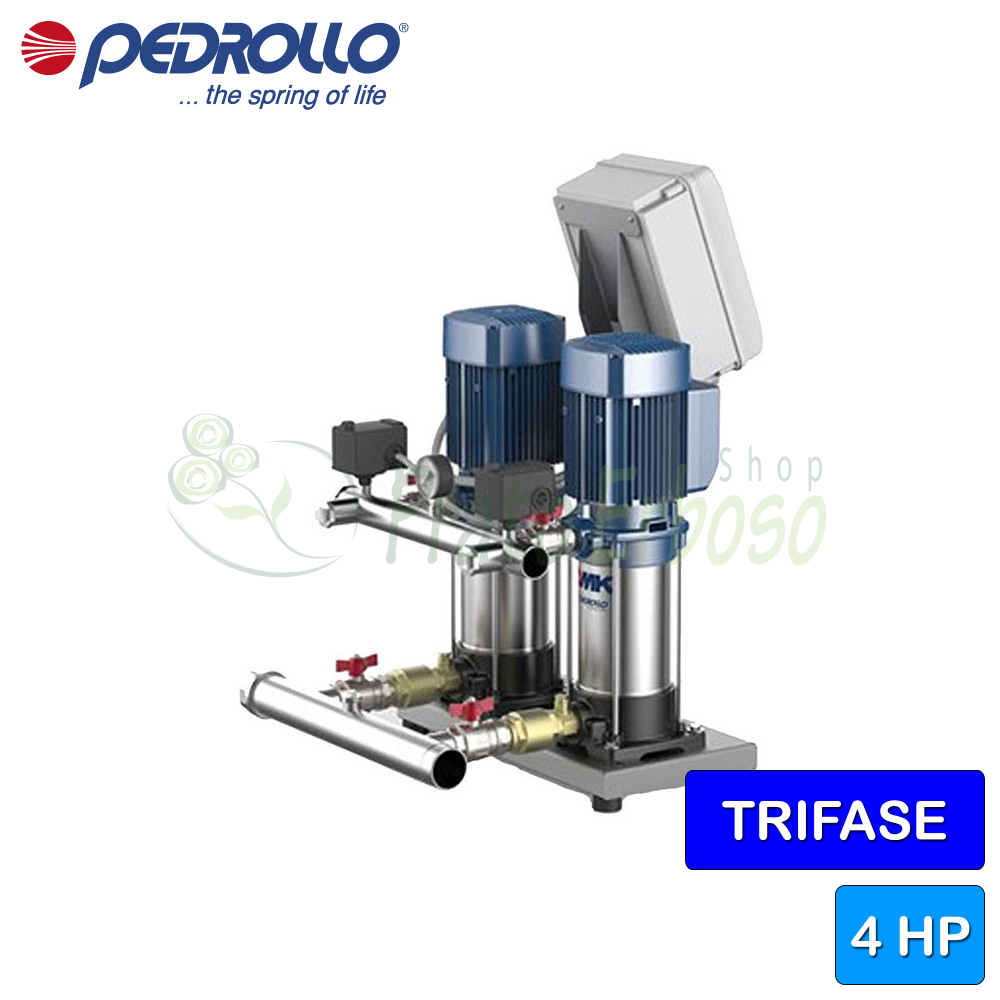

CB2 - MK 8/4 - 2x2 HP three-phase pressure group

2 THREE-PHASE ELECTRIC PUMPS.

2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 56 m.

€2,085.47 Tax included

1709.4 Tax excluded

€3,791.76-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - MK 8/4 - 2x2 HP three-phase pressure group
  • Use dot instead of comma

Loading

Description

The CB2 - MKm 8/4 pressure group from the CB2-CP series by Pedrollo allows for good working flexibility and considerable water and energy savings.

Set up in such a way that one or both electric pumps start up at each increase in demand.

Its use allows for good flexibility in system management and considerable water and energy savings.

Suitable for pumping clean water or aqueous solutions that do not chemically damage the components.

The CB2 - MKm 8/4 group is made up of 2 electric pumps, a base, a pressure switch and an electronic panel.

Data sheet
Brand Pedrollo
Reference CB2 - MK 8/4
In stock 10 Items
Motor connection
THREE-PHASE
Power (Kw)
3
Power (HP)
4
Current consumption at 400V (A)
6
Suction mouth
2" 1/2
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
1020
Max. flow rate (l./min.)
360
Min. head (m.)
15
Max. head (m.)
56
Height (cm)
74.2
Width (cm)
53
Depth (cm)
86.8
Weight (Kg)
65
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - MK models and performances

GUY
single phase
CB2 - MK 3/3
CB2 - MK 3/5
CB2 - MK 3/6
CB2 - MK 5/4
CB2 - MK 5/5
CB2 - MK 5/7
CB2 - MK 5/8
CB2 - MK 8/4
CB2 - MK 8/5
CB2 - MK 8/6
POWER
KWHP
2x0.752x1
2x1.12x1.5
2x1.52x2
2x1.12x1.5
2x1.12x1.5
2x1.82x2.5
2x2.22x3
2x1.52x2
2x1.82x2.5
2x2.22x3
