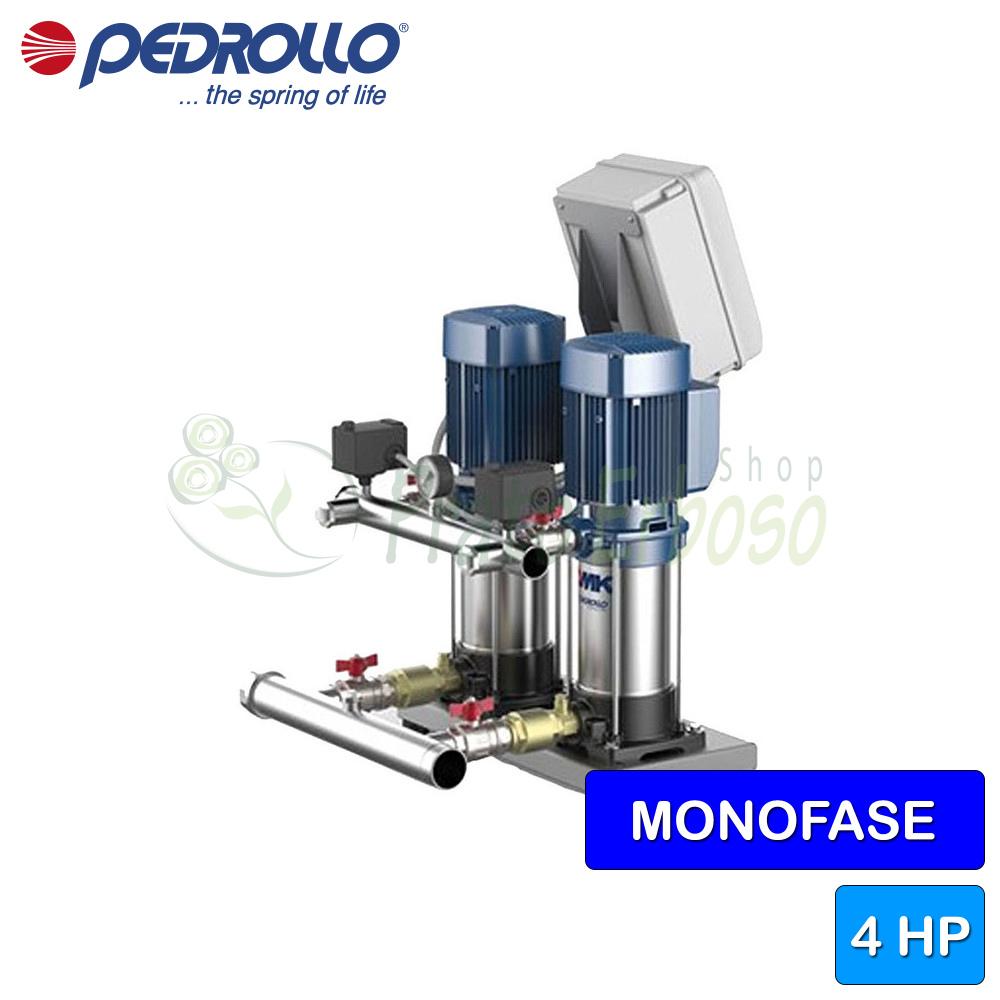

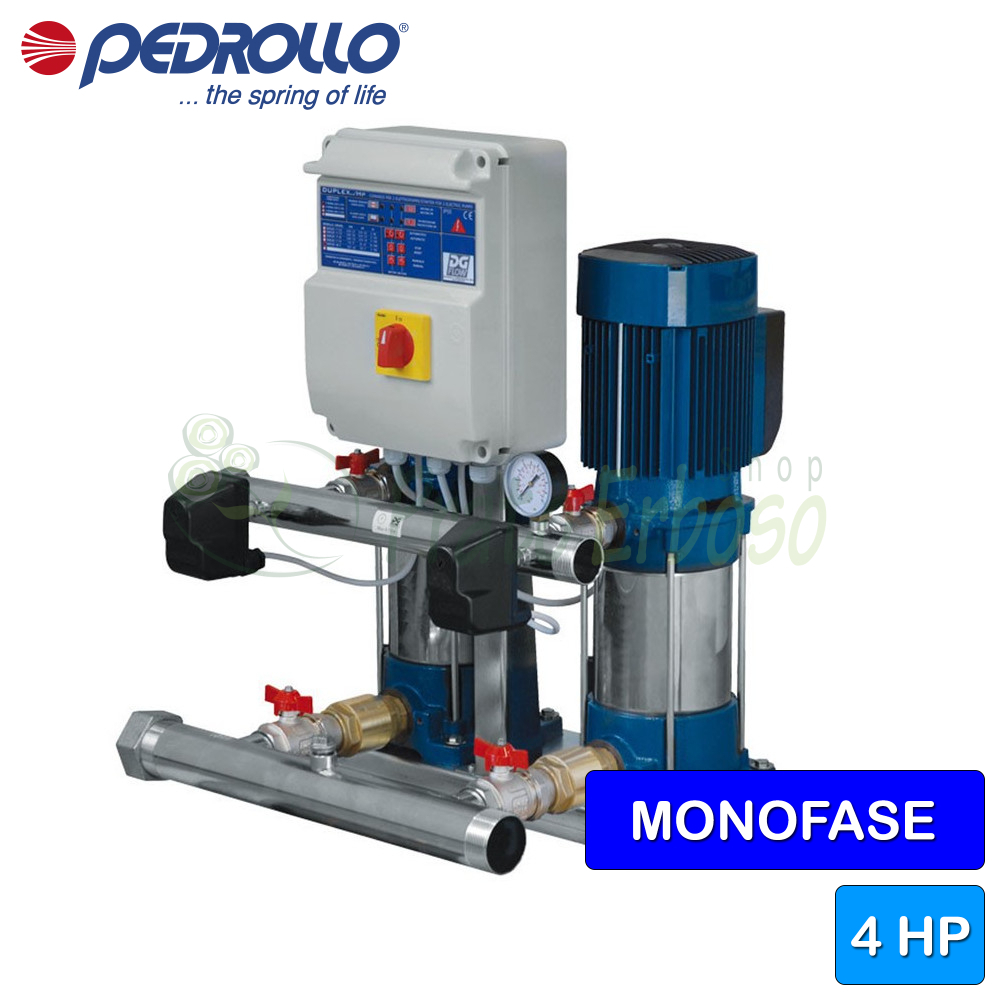

CB2 - MKm 8/4 - Single-phase 2x2HP pressure group
2 SINGLE-PHASE ELECTRIC PUMPS.
2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 56 m.
The CB2 - MKm 8/4 pressure group from the CB2-CP series by Pedrollo allows for good working flexibility and considerable water and energy savings.
Set up in such a way that one or both electric pumps start up at each increase in demand.
Its use allows for good flexibility in system management and considerable water and energy savings.
Suitable for pumping clean water or aqueous solutions that do not chemically damage the components.
The CB2 - MKm 8/4 group is made up of 2 electric pumps, a base, a pressure switch and an electronic panel.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Absorption at 230V (A)
- 17.0
- Suction mouth
- 2" 1/2
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 360
- Min. head (m.)
- 15
- Max. head (m.)
- 56
- Height (cm)
- 74.2
- Width (cm)
- 53
- Depth (cm)
- 86.8
- Weight (Kg)
- 67
- Warranty (years)
- 2
CB2 - MKm models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
