CB2 - MK 5/8 - 2x3 HP three-phase pressure group

2 THREE-PHASE ELECTRIC PUMPS.

2 x 2.2 kW (3 HP) motors. Flow rate up to 240 l/min (14.4 m³/h). Head up to 112 m.

€2,113.65 Tax included

1732.5 Tax excluded

€3,843.00-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

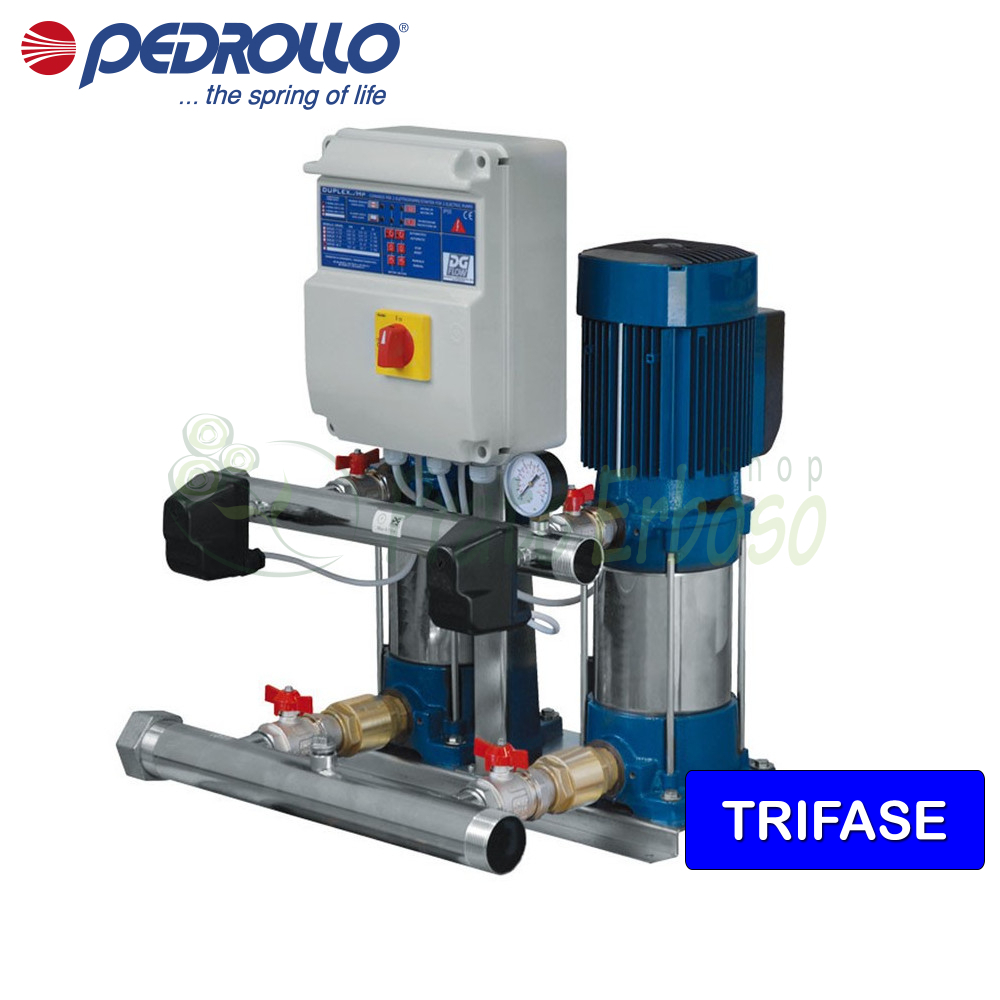

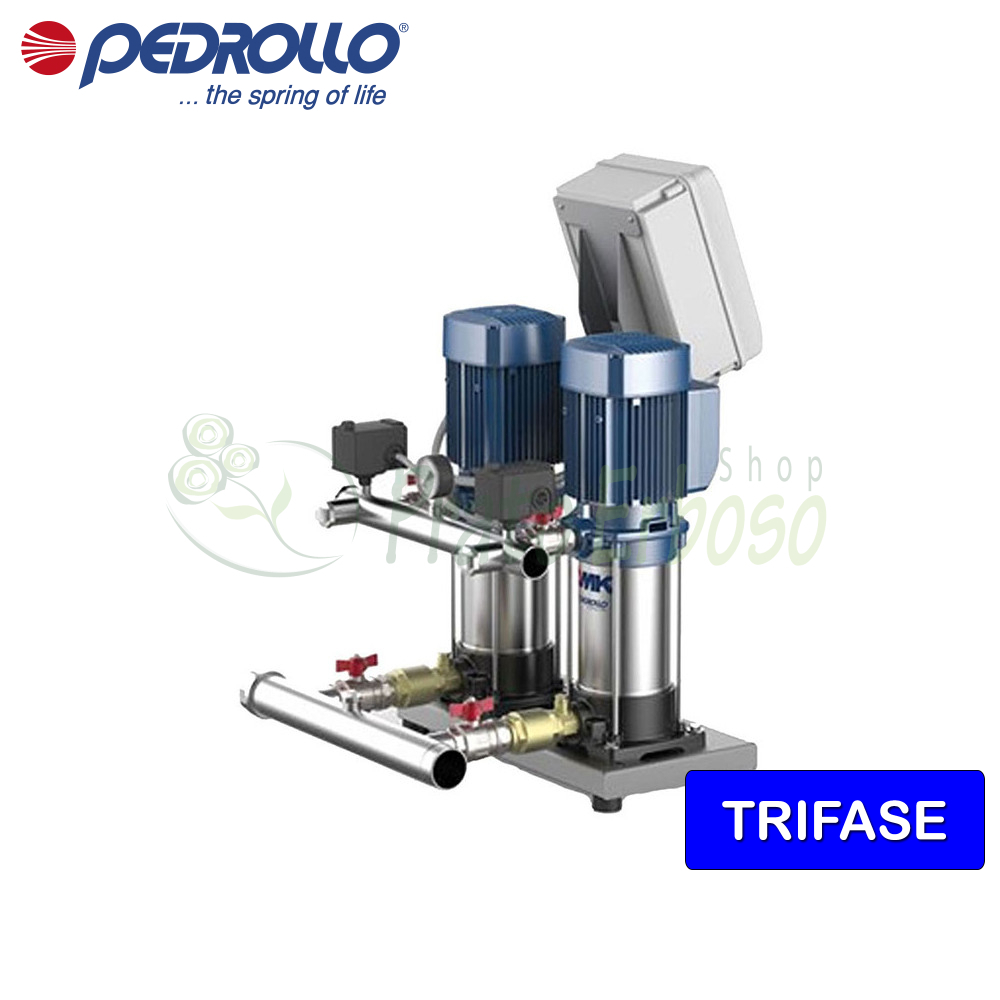

CB2 - MK 5/8 - 2x3 HP three-phase pressure group
  • Use dot instead of comma

Loading

Description

The CB2 - MK 5/8 pressure group of the CB2-CP series by Pedrollo is suitable for pumping clean water and chemically non-aggressive liquids for the components.

Consisting of 2 electric pumps suitable for water supply and pressurization.

Recommended for agricultural, civil, domestic and industrial installations.

The CB2 - MK 5/8 pressure group is set up in such a way that one or both electric pumps start up at each increase in demand.

Its use allows for good flexibility in system management and considerable water and energy savings.

Data sheet
Brand Pedrollo
Reference CB2 - MK 5/8
In stock 8 Items
Motor connection
THREE-PHASE
Power (Kw)
4.4
Power (HP)
6
Current consumption at 400V (A)
17.6
Suction mouth
2"
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
20
Max. flow rate (l./min.)
240
Min. head (m.)
40
Max. head (m.)
112
Height (cm)
69.5
Width (cm)
53
Depth (cm)
86.8
Weight (Kg)
67
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - MK models and performances

GUY
single phase
CB2 - MK 3/3
CB2 - MK 3/5
CB2 - MK 3/6
CB2 - MK 5/4
CB2 - MK 5/5
CB2 - MK 5/7
CB2 - MK 5/8
CB2 - MK 8/4
CB2 - MK 8/5
CB2 - MK 8/6
POWER
KWHP
2x0.752x1
2x1.12x1.5
2x1.52x2
2x1.12x1.5
2x1.12x1.5
2x1.82x2.5
2x2.22x3
2x1.52x2
2x1.82x2.5
2x2.22x3
