CB2 - MK 5/7 - Three-phase pressure group 2x2.5 HP
2 THREE-PHASE ELECTRIC PUMPS.
Two 1.8 kW (2.5 HP) motors. Flow rate up to 240 l/min (14.4 m³/h). Head up to 98 m.

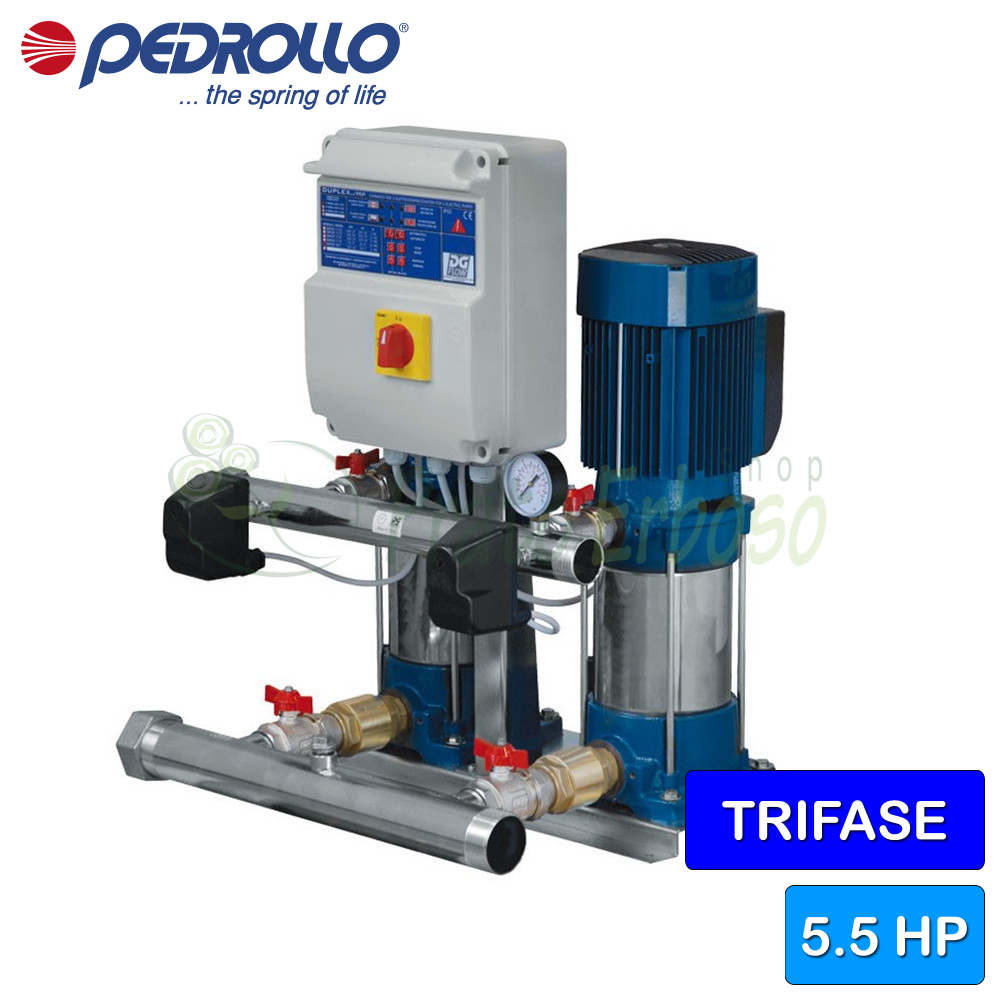

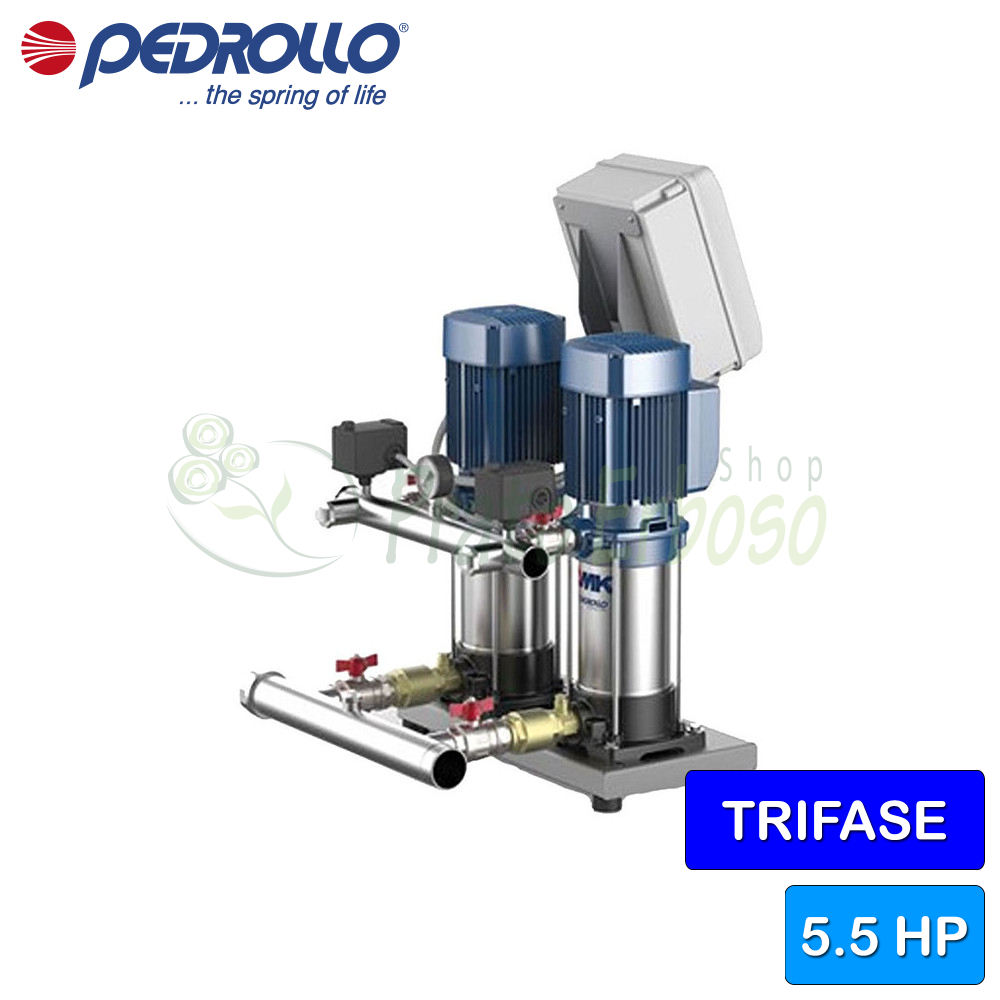

The CB2 - MK 5/7 pressure group from the CB2-CP series by Pedrollo is made up of 2 electric pumps, a base, a pressure switch and an electrical panel.
The electric pumps are connected in parallel via suction and delivery manifolds.
The base is made of metal profile and is equipped with adjustable anti-vibration feet.
The pressure switches are connected to the control panel to turn the pumps on and off.
The electrical panel, on the other hand, guarantees protection against dry running and allows the operating parameters of the entire unit to be modified.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3.6
- Power (HP)
- 5
- Current consumption at 400V (A)
- 9
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 34
- Max. head (m.)
- 98
- Height (cm)
- 69.5
- Width (cm)
- 53
- Depth (cm)
- 86.8
- Weight (Kg)
- 66
- Warranty (years)
- 2
CB2 - MK models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
