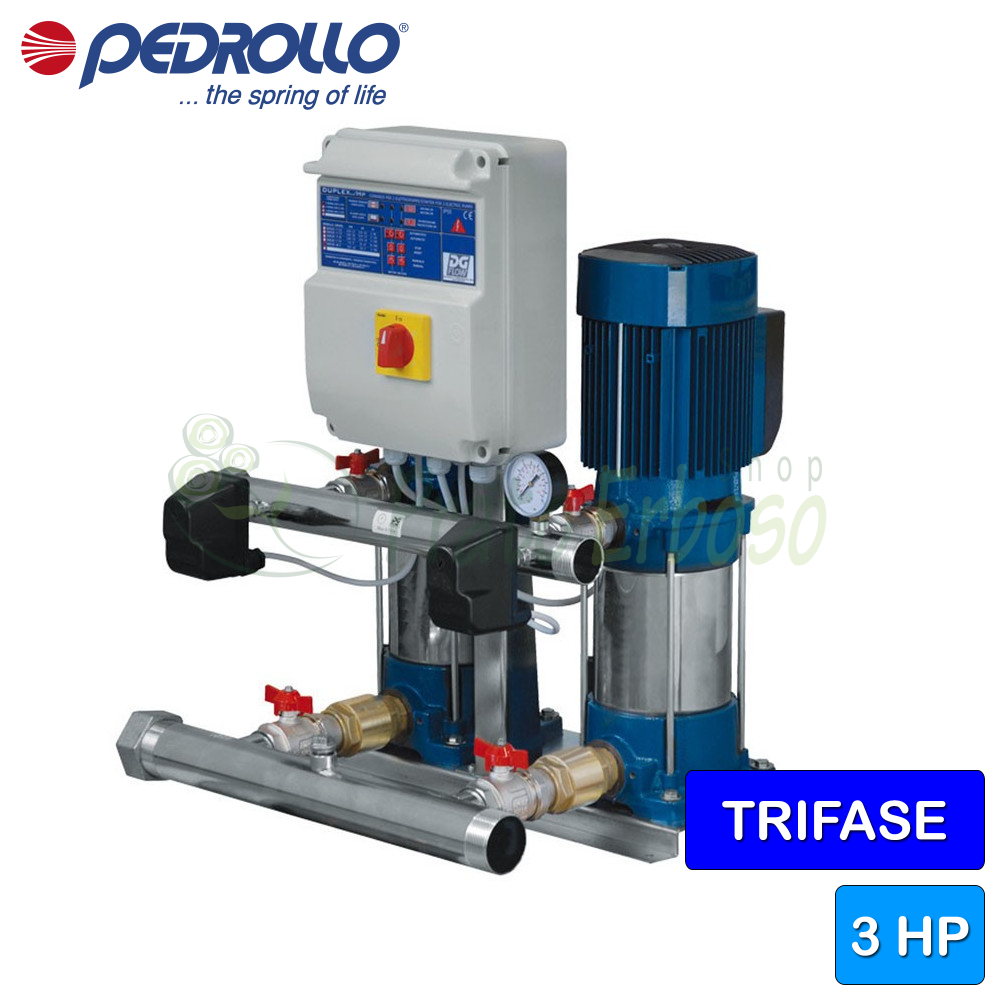

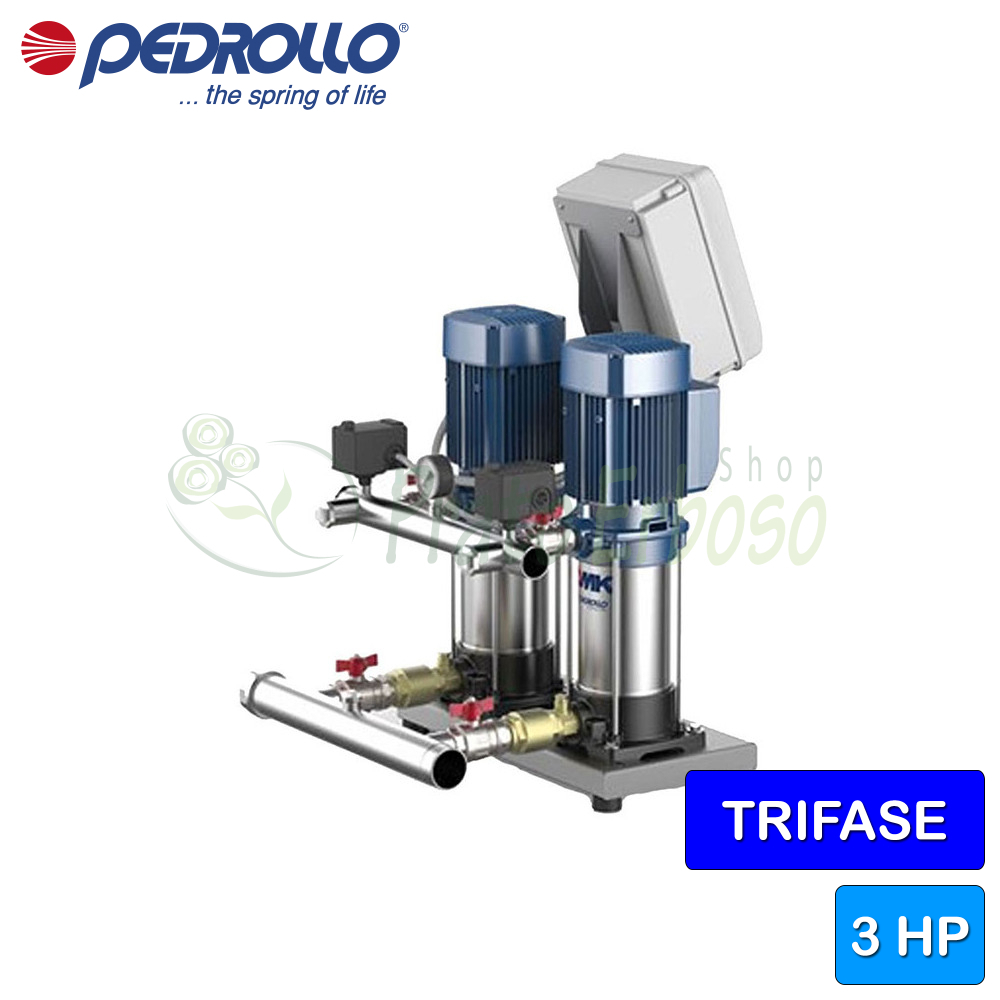

CB2 - MK 5/5 - Three-phase pressure group 2x1.5 HP

2 THREE-PHASE ELECTRIC PUMPS.

Two 1.1 kW (1.5 HP) motors. Flow rate up to 240 l/min (14.4 m³/h). Head up to 70 m.

€1,986.83 Tax included

1628.55 Tax excluded

€3,612.42-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - MK 5/5 - Three-phase pressure group 2x1.5 HP
  • Use dot instead of comma

Loading

Description

The CB2 - MK 5/5 pressure group from the CB2-CP series by Pedrollo is recommended for agricultural, civil, domestic and industrial installations.

Suitable for pumping clean water or aqueous solutions that do not chemically or mechanically damage the components.

Suitable for residential and commercial water supply, irrigation of large gardens, sports fields and agricultural crops.

The CB2 - MK 5/5 pressure group is set up in such a way that one or both electric pumps start up at each increase in demand.

Its use allows for good flexibility in system management and considerable water and energy savings.

Data sheet
Brand Pedrollo
Reference CB2 - MK 5/5
In stock 10 Items
Motor connection
THREE-PHASE
Power (Kw)
2.2
Power (HP)
3
Current consumption at 400V (A)
6
Suction mouth
2"
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
20
Max. flow rate (l./min.)
240
Min. head (m.)
25
Max. head (m.)
70
Height (cm)
69.5
Width (cm)
53
Depth (cm)
86.8
Weight (Kg)
60
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - MK models and performances

GUY
single phase
CB2 - MK 3/3
CB2 - MK 3/5
CB2 - MK 3/6
CB2 - MK 5/4
CB2 - MK 5/5
CB2 - MK 5/7
CB2 - MK 5/8
CB2 - MK 8/4
CB2 - MK 8/5
CB2 - MK 8/6
POWER
KWHP
2x0.752x1
2x1.12x1.5
2x1.52x2
2x1.12x1.5
2x1.12x1.5
2x1.82x2.5
2x2.22x3
2x1.52x2
2x1.82x2.5
2x2.22x3
