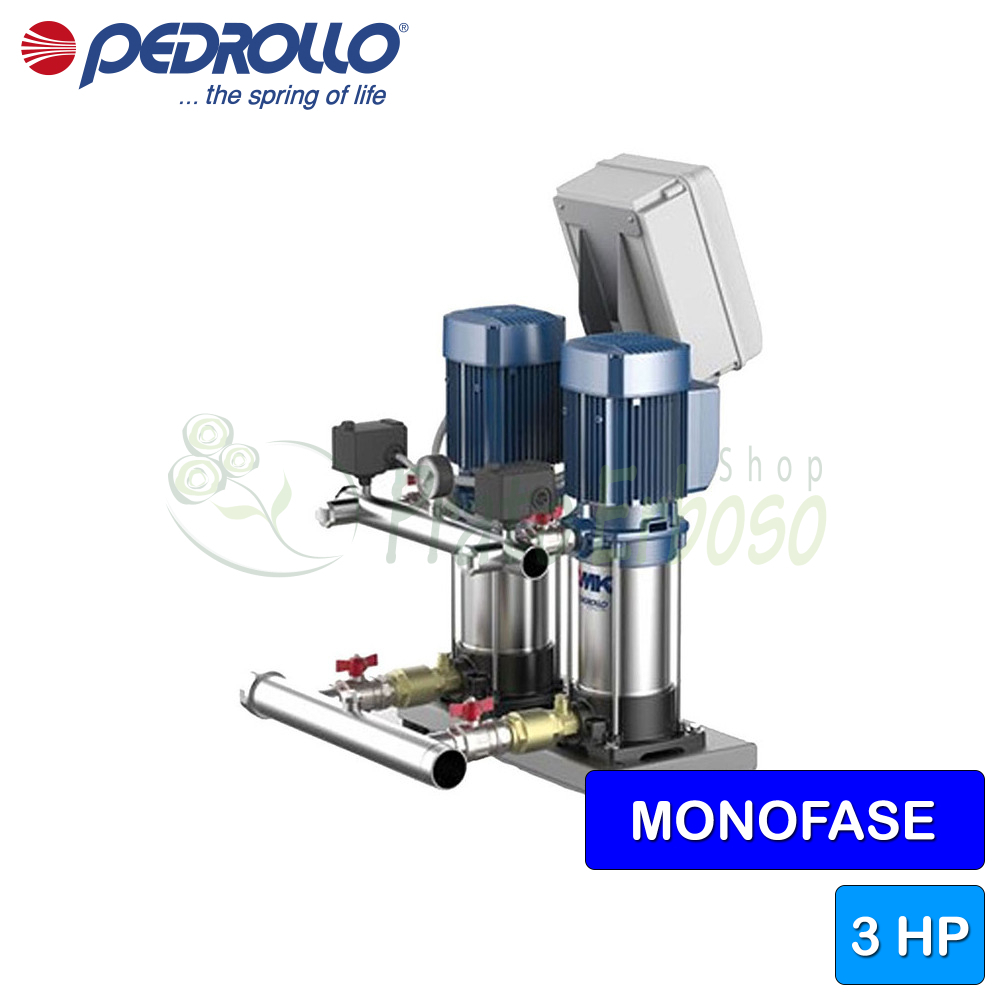

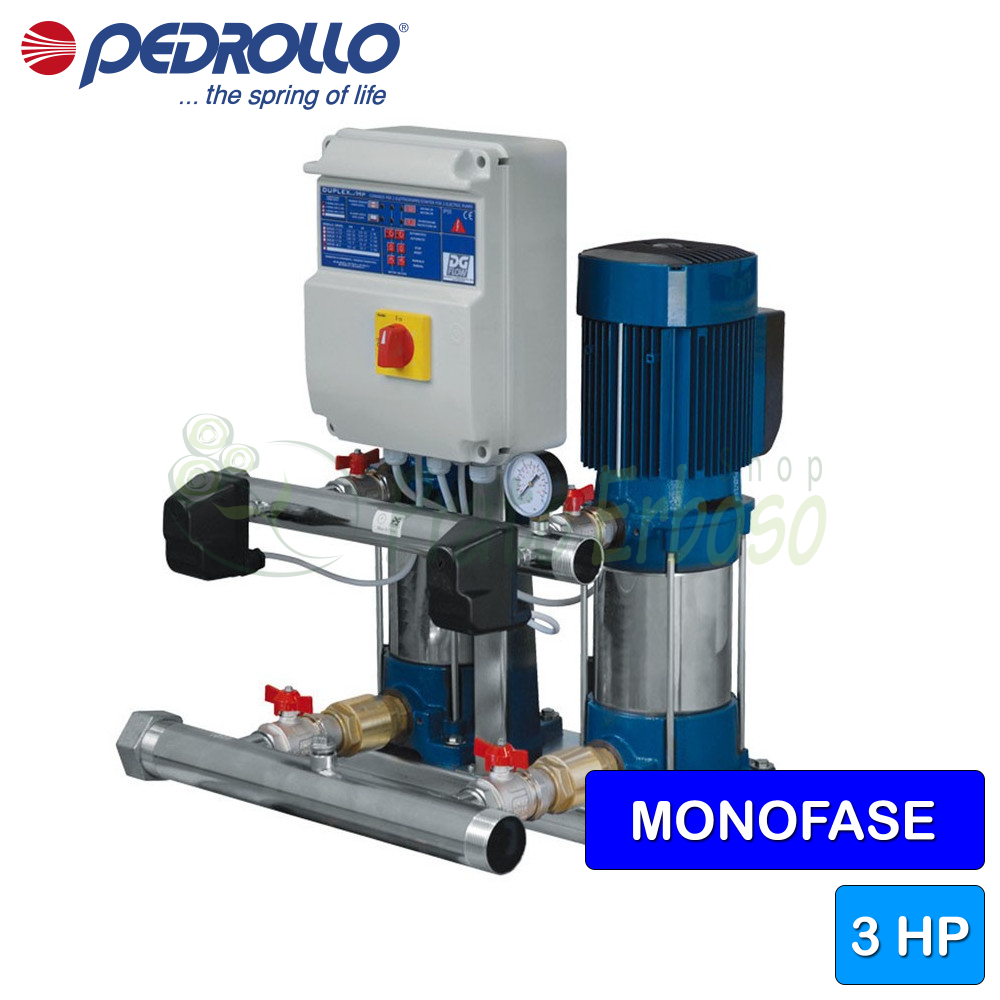

CB2 - MKm 5/5 - Single-phase pressure group 2x1.5 HP
2 SINGLE-PHASE ELECTRIC PUMPS.
Two 1.1 kW (1.5 HP) motors. Flow rate up to 240 l/min (14.4 m³/h). Head up to 70 m.
The CB2 - MKm 5/5 pressure group from the CB2-CP series by Pedrollo is recommended for agricultural, civil, domestic and industrial installations.
Suitable for pumping clean water or aqueous solutions that do not chemically or mechanically damage the components.
Suitable for residential and commercial water supply, irrigation of large gardens, sports fields and agricultural crops.
The CB2 - MKm 5/5 pressure group is set up in such a way that one or both electric pumps start up at each increase in demand.
Its use allows for good flexibility in system management and considerable water and energy savings.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 3
- Absorption at 230V (A)
- 17
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 25
- Max. head (m.)
- 70
- Height (cm)
- 69.5
- Width (cm)
- 53
- Depth (cm)
- 86.8
- Weight (Kg)
- 59
- Warranty (years)
- 2
CB2 - MKm models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
