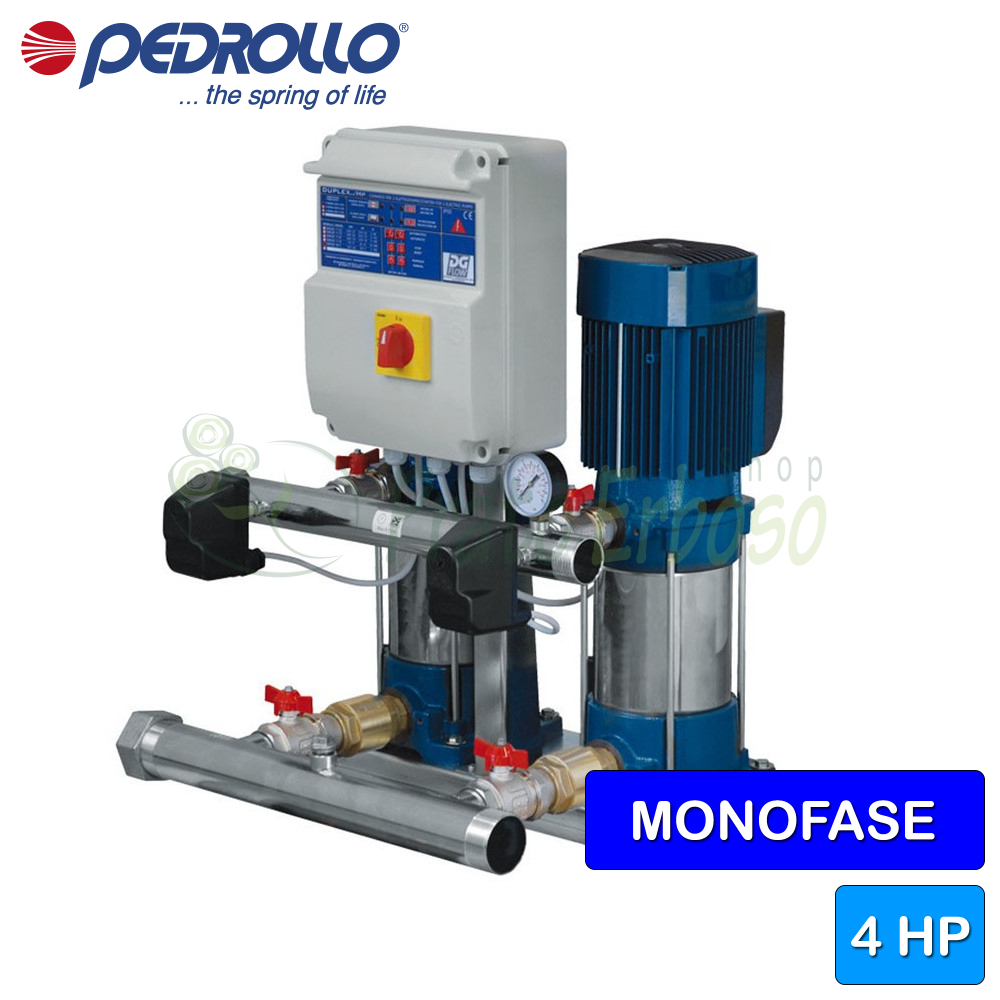

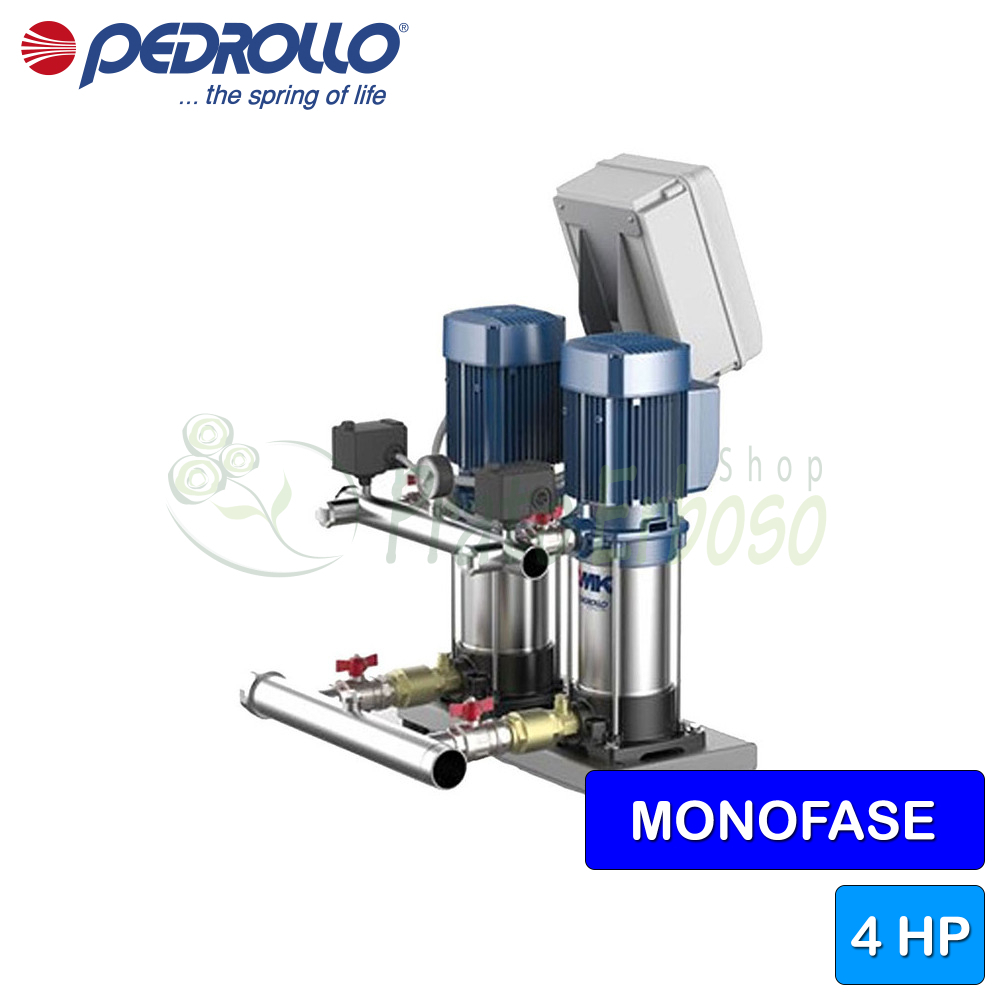

CB2 - MKm 3/6 - Single-phase 2x2 HP pressure group

2 SINGLE-PHASE ELECTRIC PUMPS.

2 x 1.5 kW (2 HP) motors. Flow rate up to 160 l/min (9.6 m³/h). Head up to 104 m.

€1,867.39 Tax included

1530.65 Tax excluded

€3,395.26-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - MKm 3/6 - Single-phase 2x2 HP pressure group
  • Use dot instead of comma

Loading

Description

The CB2 - MKm 3/6 pressure group from the CB2-CP series by Pedrollo stands out for the varied amount of activities it can perform.

Recommended for installations in the agricultural, civil, domestic and industrial sectors.

Suitable for residential and commercial water supply, irrigation of large gardens and sports fields.

The CB2 - MKm 3/6 pressure group is set up in such a way that one or both electric pumps start up at each increase in demand.

Its use allows for good flexibility in system management and considerable water and energy savings.

Data sheet
Brand Pedrollo
Reference CB2 - MKm 3/6
In stock 10 Items
Motor connection
SINGLE-PHASE
Power (Kw)
3
Power (HP)
4
Absorption at 230V (A)
18
Suction mouth
2"
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
20
Max. flow rate (l./min.)
160
Min. head (m.)
56
Max. head (m.)
104
Height (cm)
69.5
Width (cm)
53
Depth (cm)
86.8
Weight (Kg)
66
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - MKm models and performances

GUY
single phase
CB2 - MKm 3/3
CB2 - MKm 3/5
CB2 - MKm 3/6
CB2 - MKm 5/4
CB2 - MKm 5/5
CB2 - MKm 5/7
CB2 - MKm 5/8
CB2 - MKm 8/4
CB2 - MKm 8/5
CB2 - MKm 8/6
POWER
KWHP
2x0.752x1
2x1.12x1.5
2x1.52x2
2x1.12x1.5
2x1.12x1.5
2x1.82x2.5
2x2.22x3
2x1.52x2
2x1.82x2.5
2x2.22x3
