CB2 - MK 3/5 - Three-phase pressure group 2x1.5 HP

2 THREE-PHASE ELECTRIC PUMPS.

Two 1.1 kW (1.5 HP) motors. Flow rate up to 160 l/min (9.6 m³/h). Head up to 87 m.

€1,986.83 Tax included

1628.55 Tax excluded

€3,612.42-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - MK 3/5 - Three-phase pressure group 2x1.5 HP
  • Use dot instead of comma

Loading

Description

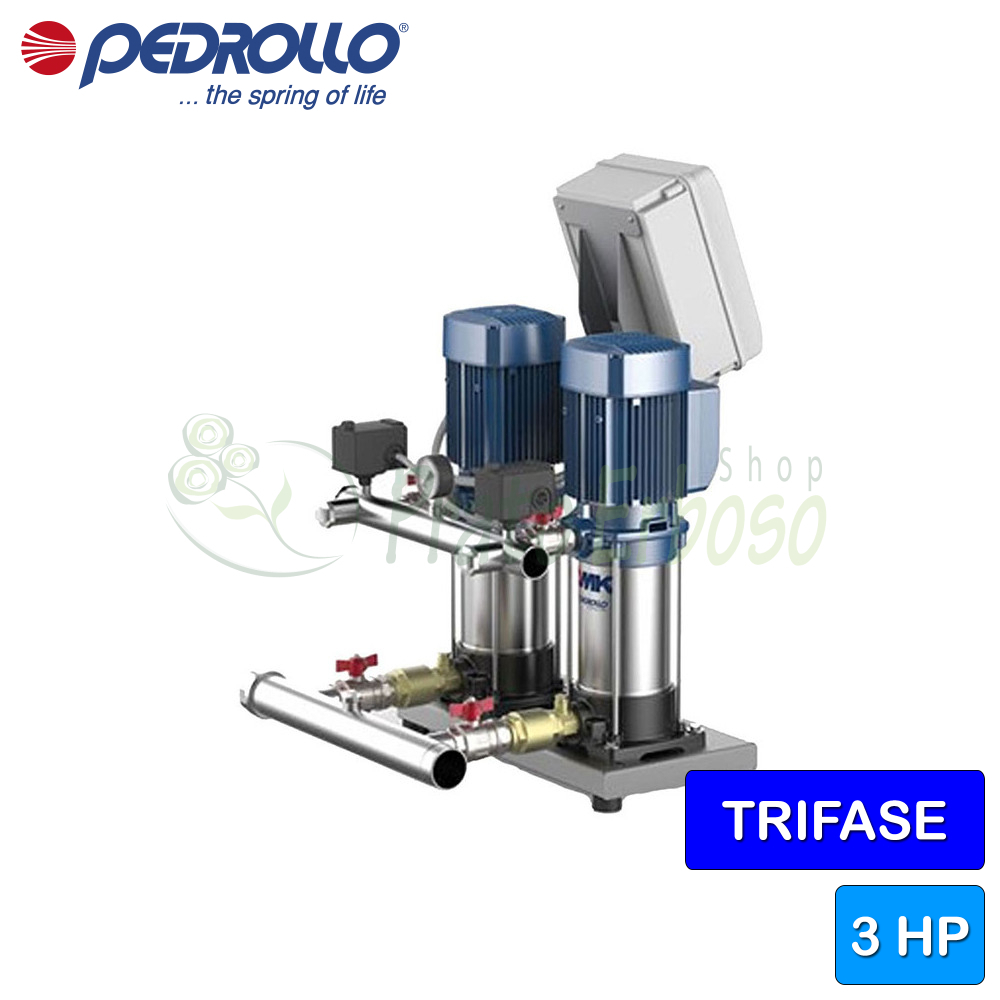

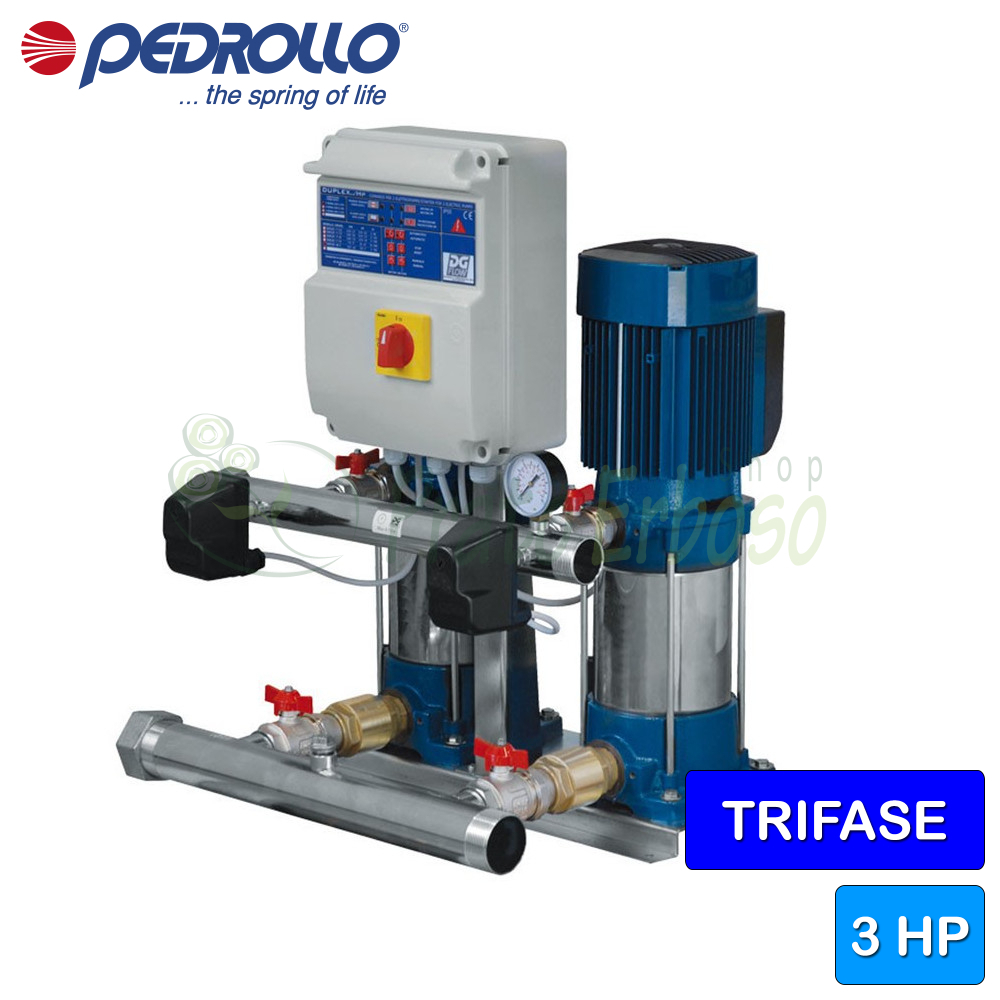

The CB2 - MK 3/5 pressure group from the CB2-MK series by Pedrollo is composed of two twin-impeller centrifugal electric pumps.

It allows you to manage the system flexibly and efficiently.

Set up in such a way that one or both electric pumps start up at each increase in demand.

The control panel allows the automatic switching of the pumps at each start or stop cycle.

The CB2 - MK 3/5 pressure group allows you to pump clean water and chemically non-aggressive liquids for the pump.

Data sheet
Brand Pedrollo
Reference CB2 - MK 3/5
In stock 21 Items
Motor connection
THREE-PHASE
Power (Kw)
2.2
Power (HP)
3
Current consumption at 400V (A)
6
Suction mouth
2"
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
20
Max. flow rate (l./min.)
160
Min. head (m.)
47
Max. head (m.)
87
Height (cm)
69.5
Width (cm)
53
Depth (cm)
86.8
Weight (Kg)
60
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - MK models and performances

GUY
single phase
CB2 - MK 3/3
CB2 - MK 3/5
CB2 - MK 3/6
CB2 - MK 5/4
CB2 - MK 5/5
CB2 - MK 5/7
CB2 - MK 5/8
CB2 - MK 8/4
CB2 - MK 8/5
CB2 - MK 8/6
POWER
KWHP
2x0.752x1
2x1.12x1.5
2x1.52x2
2x1.12x1.5
2x1.12x1.5
2x1.82x2.5
2x2.22x3
2x1.52x2
2x1.82x2.5
2x2.22x3
