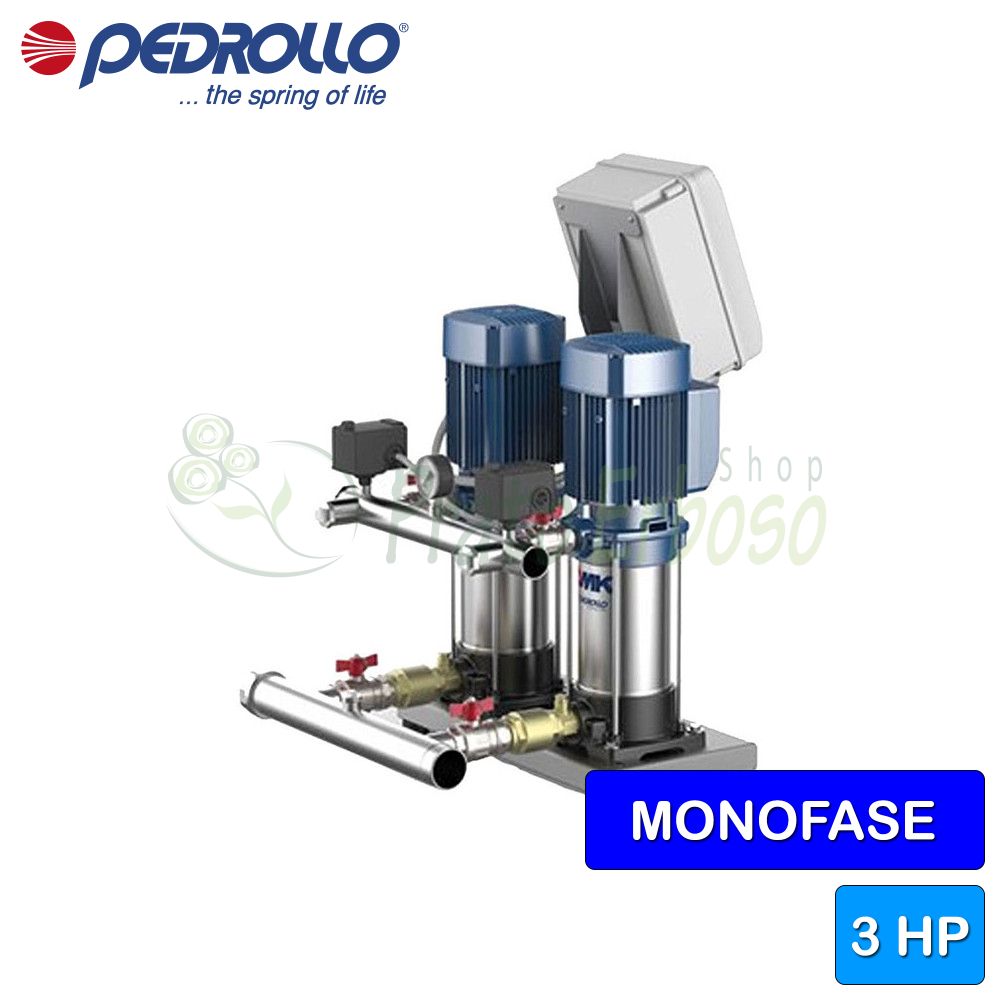

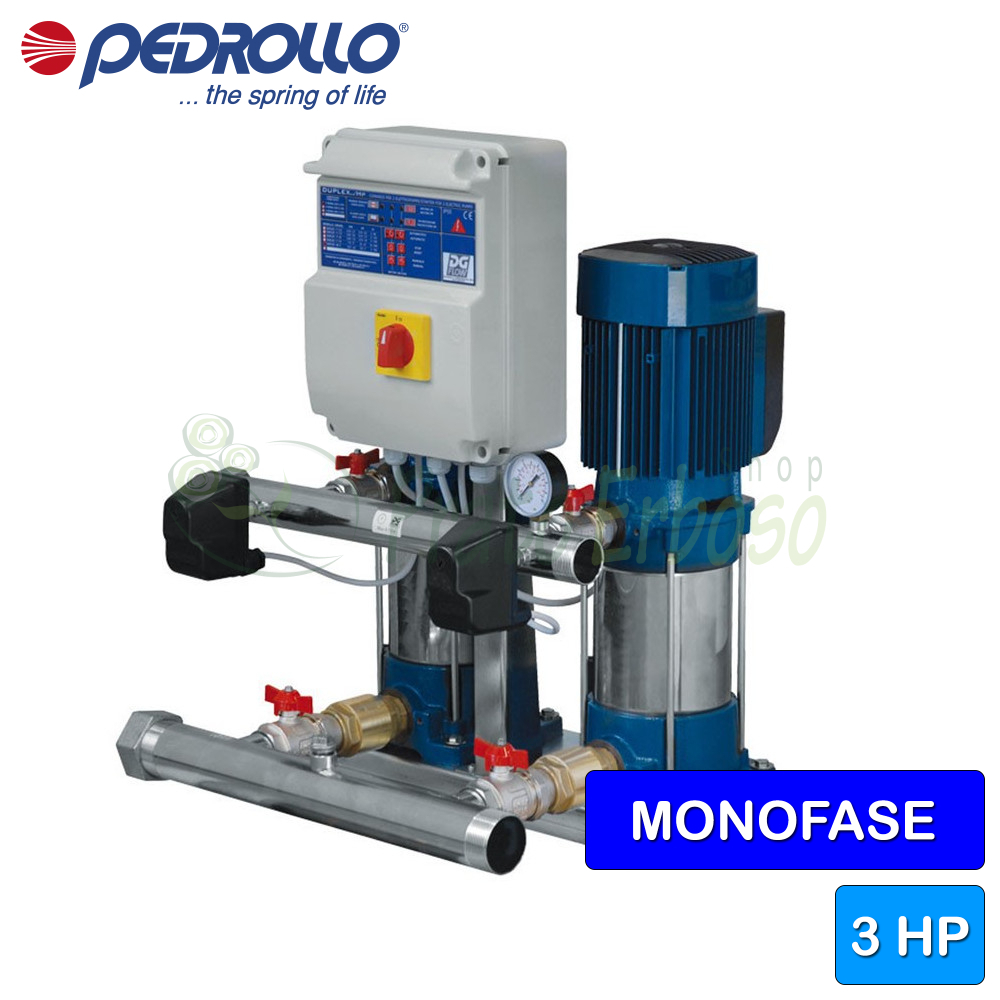

CB2 - MKm 3/5 - Single-phase pressure group 2x1.5 HP
2 SINGLE-PHASE ELECTRIC PUMPS.
Two 1.1 kW (1.5 HP) motors. Flow rate up to 160 l/min (9.6 m³/h). Head up to 87 m.
Description
The CB2 - MKm 3/5 pressure group from the CB2-MK series by Pedrollo is composed of two twin-impeller centrifugal electric pumps.
It allows you to manage the system flexibly and efficiently.
Set up in such a way that one or both electric pumps start up at each increase in demand.
The control panel allows the automatic switching of the pumps at each start or stop cycle.
The CB2 - MKm 3/5 pressure group allows you to pump clean water and chemically non-aggressive liquids for the pump.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 14
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 160
- Min. head (m.)
- 47
- Max. head (m.)
- 87
- Height (cm)
- 69.5
- Width (cm)
- 53
- Depth (cm)
- 86.8
- Weight (Kg)
- 60
- Warranty (years)
- 2
CB2 - MKm models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
