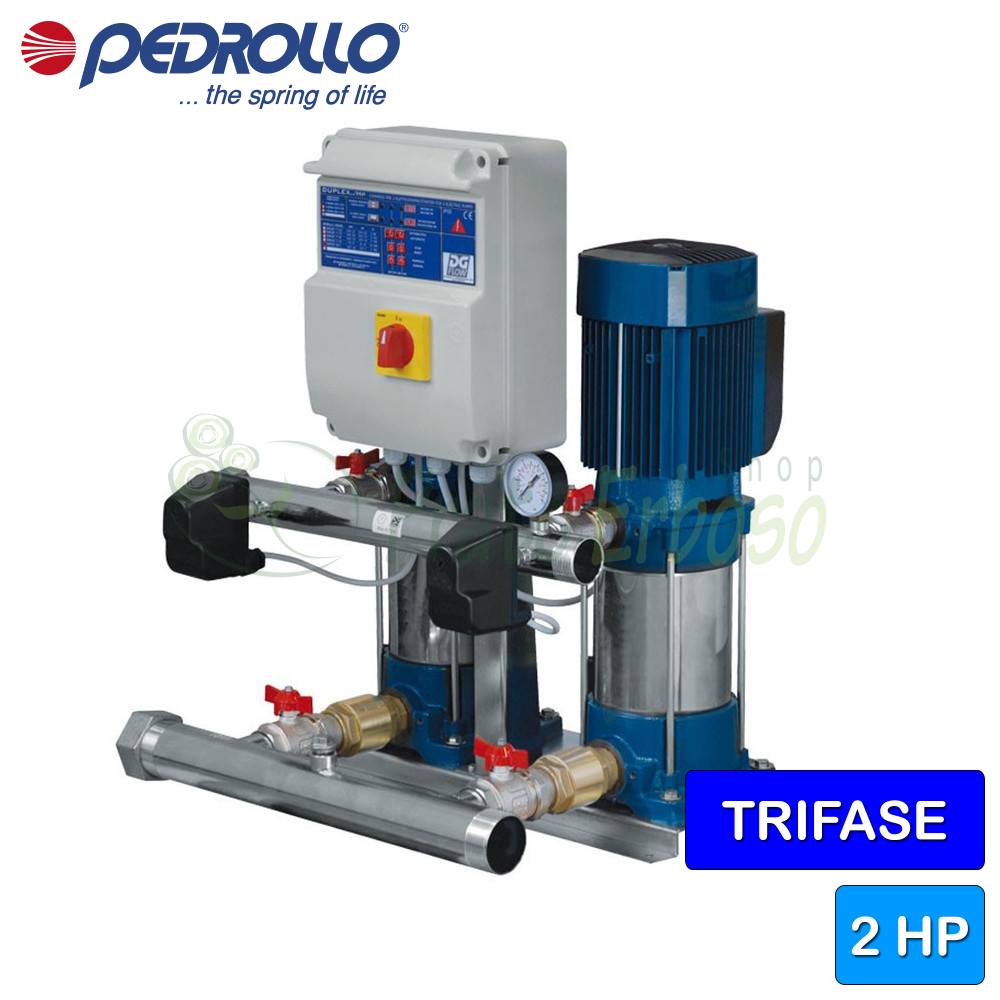

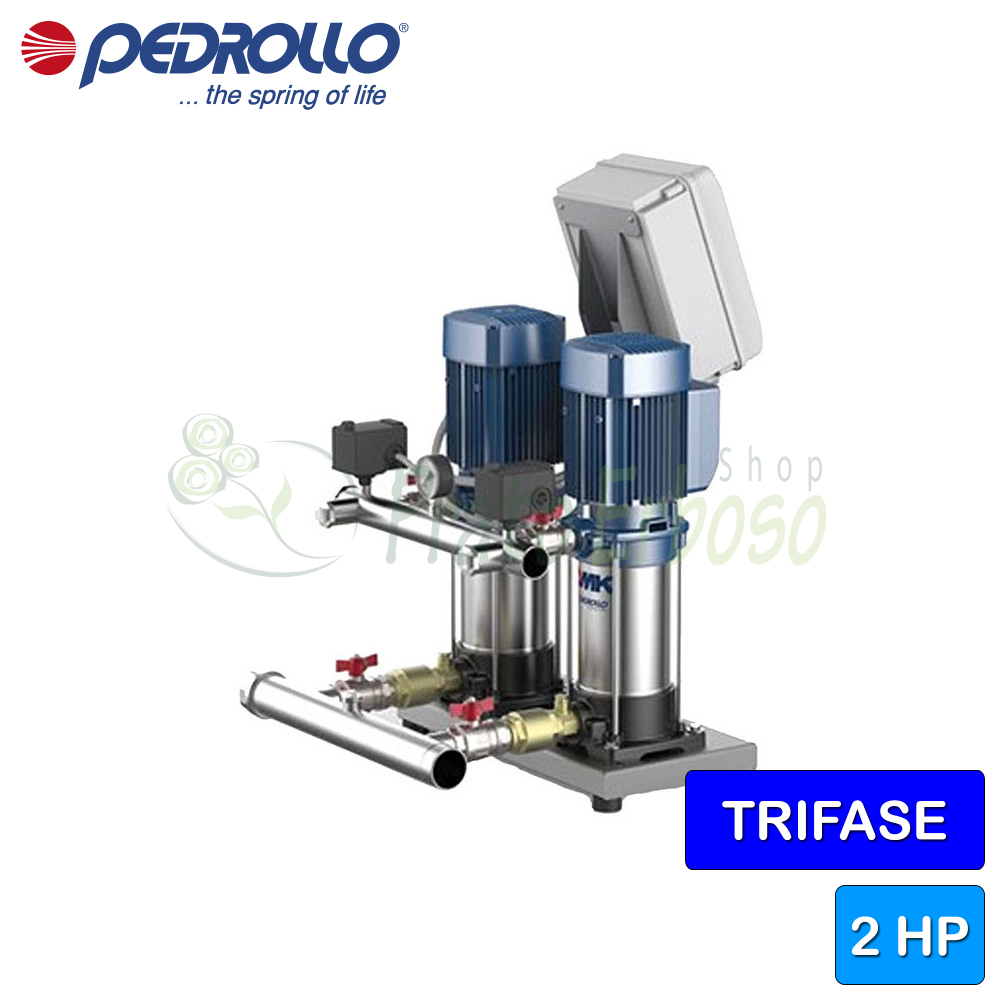

CB2 - MK 3/3 - 2x1 HP three-phase pressure group
2 THREE-PHASE ELECTRIC PUMPS.
2 x 0.75 kW (1 HP) motors. Flow rate up to 160 l/min (9.6 m³/h). Head up to 52 m.
The CB2 - MK 3/3 pressure group from the CB2-MK series by Pedrollo allows for good flexibility in system management.
Recommended for installations in the agricultural, civil and industrial sectors.
Suitable for residential and commercial water supply, irrigation of large gardens, sports fields and for the movement of clean water.
The CB2 - MK 3/3 group is suitable for pumping clean water or aqueous solutions that do not chemically or mechanically damage the components.
Consisting of 2 MK 3/3 electric pumps, the base, 2 pressure switches and an electrical panel.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Current consumption at 400V (A)
- 4.8
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 160
- Min. head (m.)
- 28
- Max. head (m.)
- 69.5
- Height (cm)
- 69.5
- Width (cm)
- 53
- Depth (cm)
- 86.8
- Weight (Kg)
- 59
- Warranty (years)
- 2
CB2 - MK models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
