CB2 - MKm 3/3 - Single-phase pressure group 2x1 HP

2 SINGLE-PHASE ELECTRIC PUMPS.

2 x 0.75 kW (1 HP) motors. Flow rate up to 160 l/min (9.6 m³/h). Head up to 52 m.

€1,775.47 Tax included

1455.3 Tax excluded

€3,228.12-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - MKm 3/3 - Single-phase pressure group 2x1 HP
  • Use dot instead of comma

Loading

Description

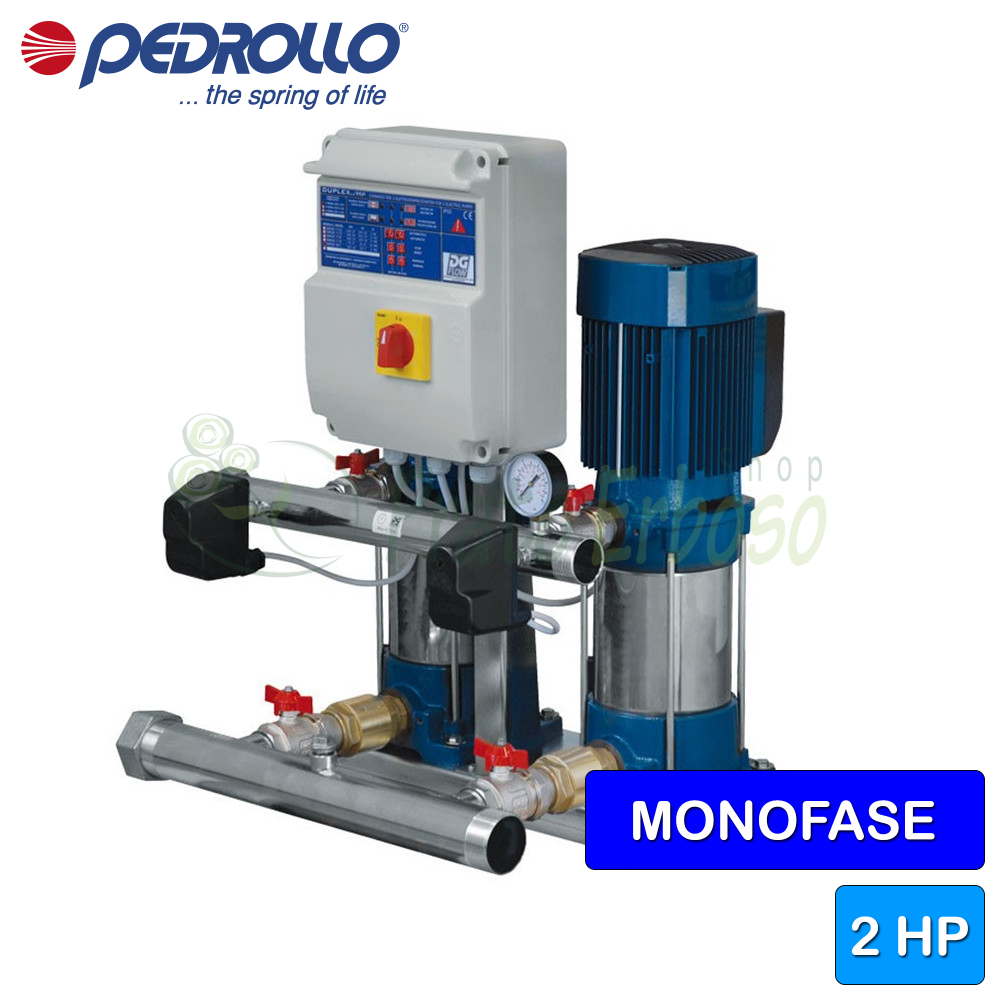

The CB2 - MKm 3/3 pressure group from the CB2-MK series by Pedrollo allows for good flexibility in system management.

Recommended for installations in the agricultural, civil and industrial sectors.

Suitable for residential and commercial water supply, irrigation of large gardens, sports fields and for the movement of clean water.

The CB2 - MKm 3/3 group is suitable for pumping clean water or aqueous solutions that do not chemically or mechanically damage the components.

Consisting of 2 MKm 3/3 electric pumps, the base, 2 pressure switches and an electrical panel.

Data sheet
Brand Pedrollo
Reference CB2 - MKm 3/3
In stock 10 Items
Motor connection
SINGLE-PHASE
Power (Kw)
1.5
Power (HP)
2
Absorption at 230V (A)
12
Suction mouth
2"
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
20
Max. flow rate (l./min.)
160
Min. head (m.)
28
Max. head (m.)
52
Jobs
irrigation
pressurization systems
washing systems
water supply
Height (cm)
69.5
Width (cm)
53
Depth (cm)
86.8
Weight (Kg)
58
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - MKm models and performances

GUY
single phase
CB2 - MKm 3/3
CB2 - MKm 3/5
CB2 - MKm 3/6
CB2 - MKm 5/4
CB2 - MKm 5/5
CB2 - MKm 5/7
CB2 - MKm 5/8
CB2 - MKm 8/4
CB2 - MKm 8/5
CB2 - MKm 8/6
POWER
KWHP
2x0.752x1
2x1.12x1.5
2x1.52x2
2x1.12x1.5
2x1.12x1.5
2x1.82x2.5
2x2.22x3
2x1.52x2
2x1.82x2.5
2x2.22x3
