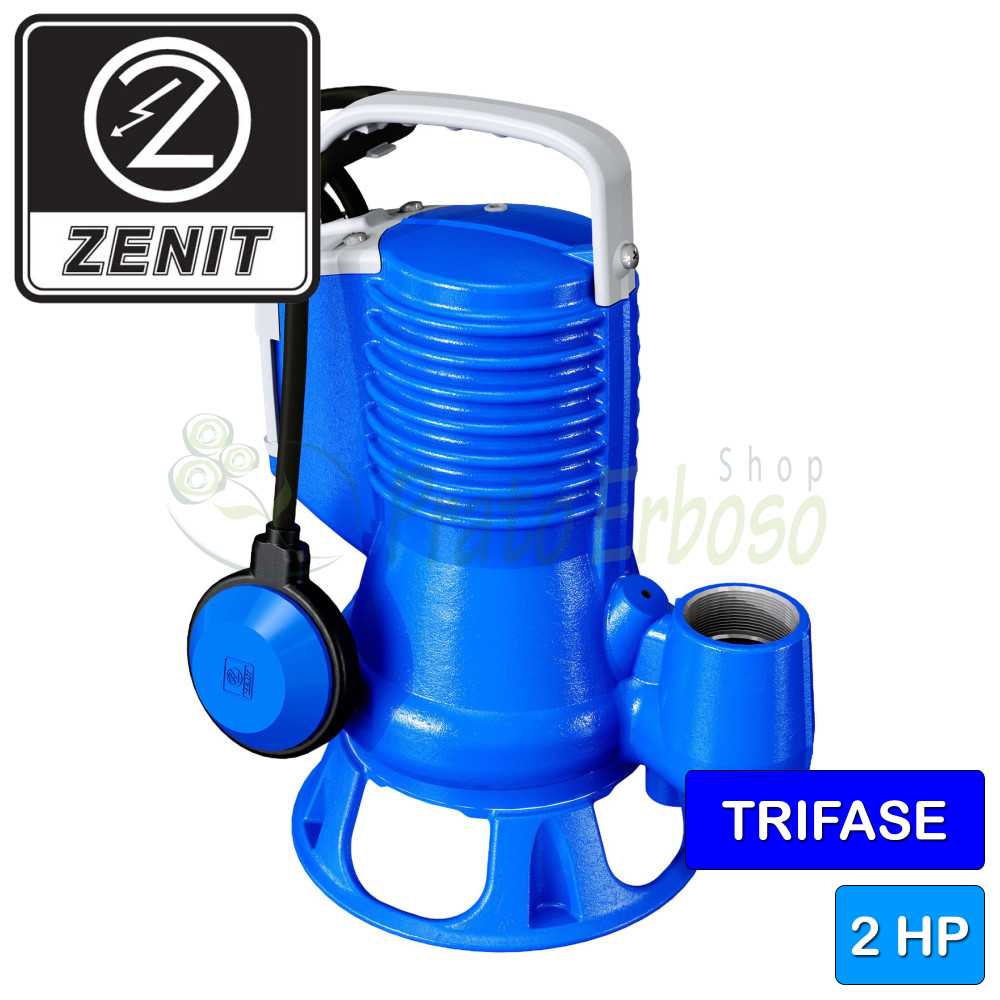

200/2/G50V A1CT5NCQTRG - 2 HP three-phase VORTEX electric pump for waste water

Flow rate up to 720 l/min (43.2 m³/h). Head up to 15.3 m. 1.5 kW (2 HP) motor. With float switch.

€890.11 Tax included

729.6 Tax excluded

€936.96-5%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

200/2/G50V A1CT5NCQTRG - 2 HP three-phase VORTEX electric pump for waste water
  • Use dot instead of comma

Loading

Description

The Zenit 200/2/G50V A1CT5NCQTRG submersible electric pump from the DG bluePRO series is suitable for use with soiled biological liquids, sewage, rainwater, and seepage water. In both domestic and industrial applications.

Equipped with a vortex impeller, this allows the pump to filter solids up to 50 millimetres.

It has a maximum flow rate of 720 litres per minute and a maximum head of 15.3 metres.

The 200/2/G50V A1CT5NCQTRG can be installed up to 20 meters underwater. It boasts an IP 68 certification.

The use of materials such as cast iron, stainless steel and the double mechanical seal make this pump solid and robust.

The supplied cable 200/2/G50V A1CT5NCQTRG is 5 metres long.

Data sheet
Brand Zenit
Reference 200/2/G50V A1CT5NCQTRG
In stock 50 Items
MPN 1105.002
Motor connection
THREE-PHASE
Power (Kw)
1.5
Power (HP)
2
Delivery mouth
2"
Pump body
Cast iron
Impeller
Cast iron
Crankshaft
AISI 420 stainless steel
Check valve
No
Degree of protection
IP 68
Minimum flow rate (l./min.)
60
Max. flow rate (l./min.)
720
Min. head (m.)
2.5
Max. head (m.)
15.3
Cable length (m.)
5
Jobs
drainage
slightly dirty waters
water supply
Max. liquid temperature (°C)
40
Height (cm)
36.5
Width (cm)
46.5
Depth (cm)
20.0
Weight (Kg)
24
Warranty (years)
2
Attachments

Technical data Blue and BluePro

Construction characteristics, load curves and performance of Zenit Blue and BluePro series pumps.

Download (2.28MB)
