200/2/G50V A1CM5NCQTCG - 2 HP single-phase VORTEX electric pump for waste water

Flow rate up to 720 l/min (43.2 m³/h). Head up to 15.3 m. 1.5 kW (2 HP) motor. With float switch.

€815.94 Tax included

668.8 Tax excluded

€858.88-5%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

200/2/G50V A1CM5NCQTCG - 2 HP single-phase VORTEX electric pump for waste water
  • Use dot instead of comma

Loading

Description

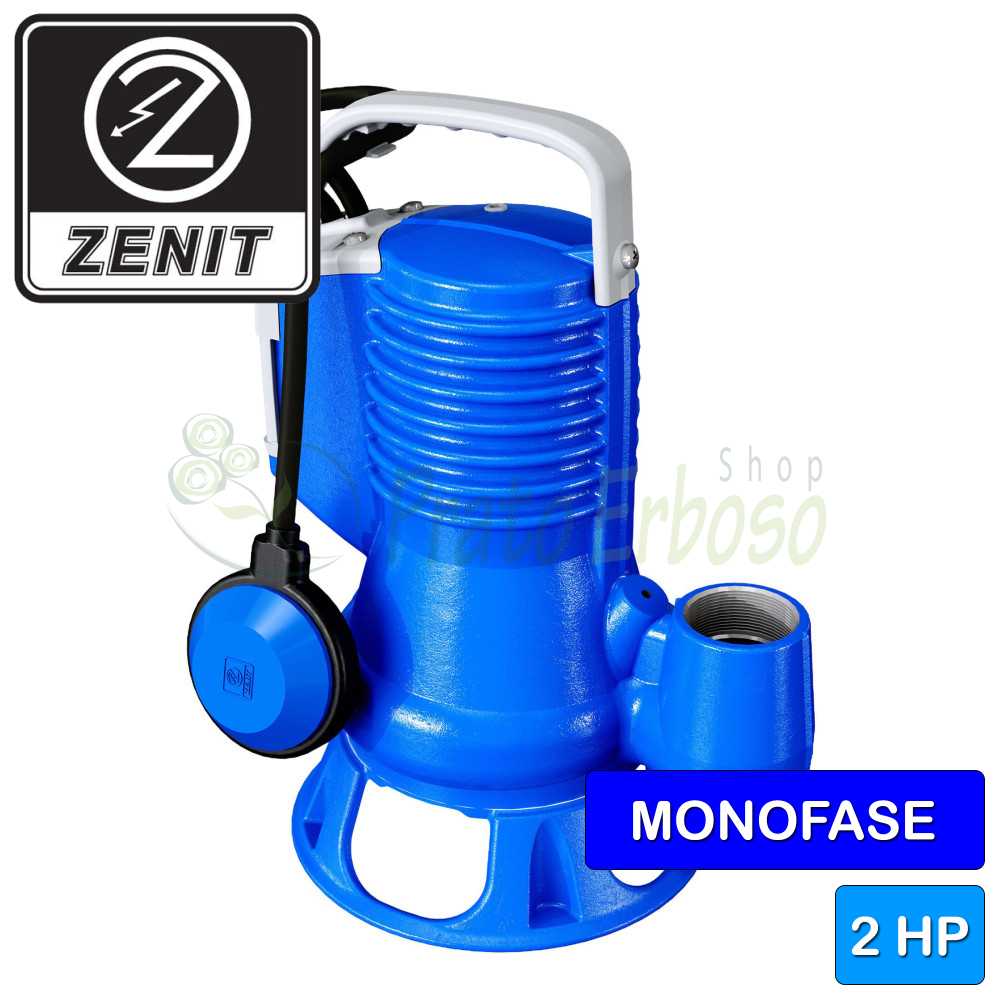

The 200/2/G50V A1CM5NCQTCG submersible electric pump from the DG bluePRO series by Zenit is ideal for the domestic and professional sectors.

Suitable for heavy-duty use in the presence of contaminated biological liquids, sewage, rainwater and seepage water.

It has a maximum flow rate of 720 litres per minute and a maximum head of 15.3 metres.

The distinguishing feature of the 200/2/G50V A1CM5NCQTCG is the vortex impeller which allows the passage of solid bodies.

It can be installed up to 20 meters below water level.

Made from materials such as cast iron and steel, Zenit has created a solid product suitable for even the most extreme conditions.

The cable supplied with the 200/2/G50V A1CM5NCQTCG is 5 meters.

Data sheet
Brand Zenit
Reference 200/2/G50V A1CM5NCQTCG
In stock 50 Items
MPN 1104.004
Motor connection
SINGLE-PHASE
Power (Kw)
1.5
Power (HP)
2
Delivery mouth
2"
Pump body
Cast iron
Impeller
Cast iron
Crankshaft
AISI 420 stainless steel
Check valve
No
Degree of protection
IP 68
Minimum flow rate (l./min.)
60
Max. flow rate (l./min.)
720
Min. head (m.)
2.5
Max. head (m.)
15.3
Cable length (m.)
5
Jobs
drainage
slightly dirty waters
water supply
Max. liquid temperature (°C)
40
Height (cm)
36.5
Width (cm)
46.5
Depth (cm)
20.0
Weight (Kg)
24
Warranty (years)
2
Attachments

Technical data Blue and BluePro

Construction characteristics, load curves and performance of Zenit Blue and BluePro series pumps.

Download (2.28MB)
