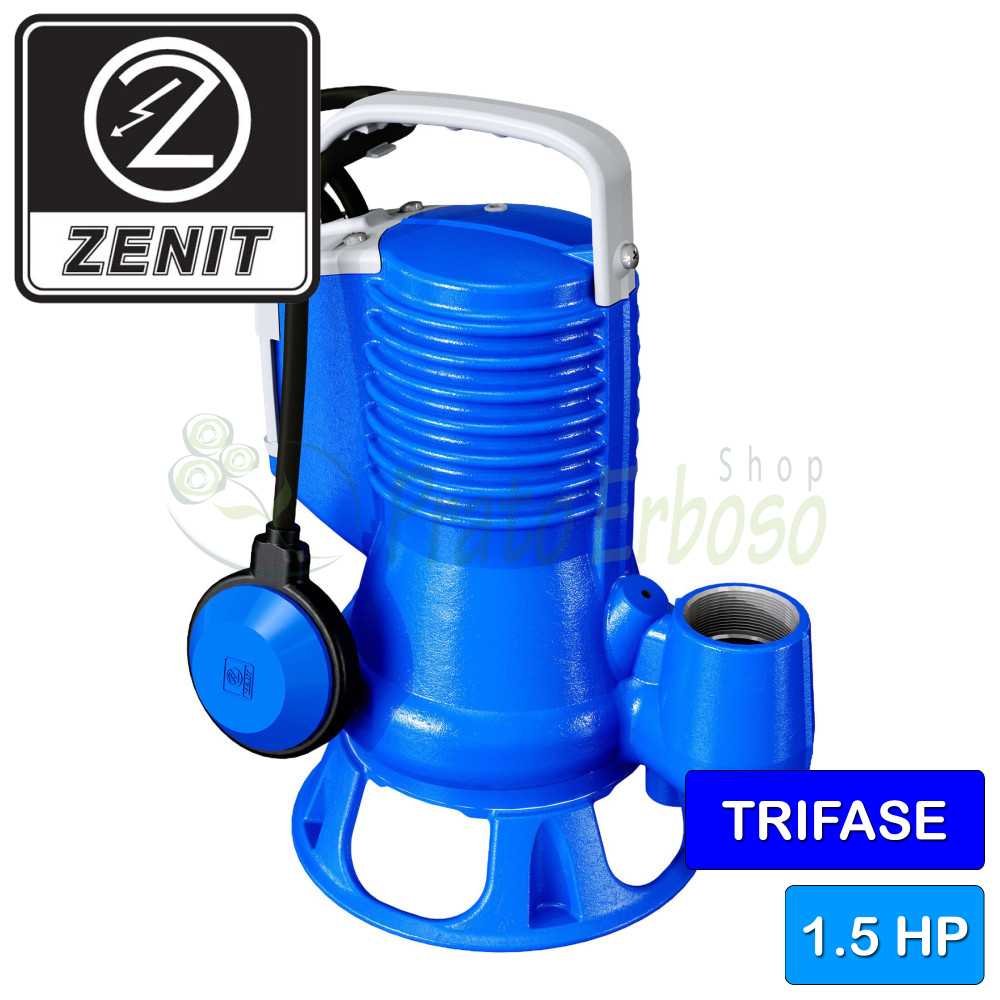

150/2/G50V A1CT5NCQTRG - 1.5 HP three-phase VORTEX electric pump for waste water
Flow rate up to 600 l/min (36.0 m³/h). Head up to 12.3 m. 1.1 kW (1.5 HP) motor. With float switch.
The Zenit DG bluePRO series 150/2/G50V A1CT5NCQTRG submersible electric pump is suitable for use with soiled biological liquids, sewage, rainwater, and seepage water. In both domestic and industrial applications.
Equipped with a vortex impeller, this allows the pump to filter solids up to 50 millimetres.
It has a maximum flow rate of 360 litres per minute and a maximum head of 10.2 metres.
The 150/2/G50V A1CT5NCQTRG can be installed up to 20 meters underwater. It boasts an IP 68 certification.
The use of materials such as cast iron, stainless steel and the double mechanical seal make this pump solid and robust.
The supplied cable 150/2/G50V A1CT5NCQTRG is 5 metres long.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 60
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 2.4
- Max. head (m.)
- 12.3
- Cable length (m.)
- 5
- Jobs
- drainage
slightly dirty waters
water supply - Max. liquid temperature (°C)
- 40
- Height (cm)
- 36.5
- Width (cm)
- 46.5
- Depth (cm)
- 20.0
- Weight (Kg)
- 23
- Warranty (years)
- 2
