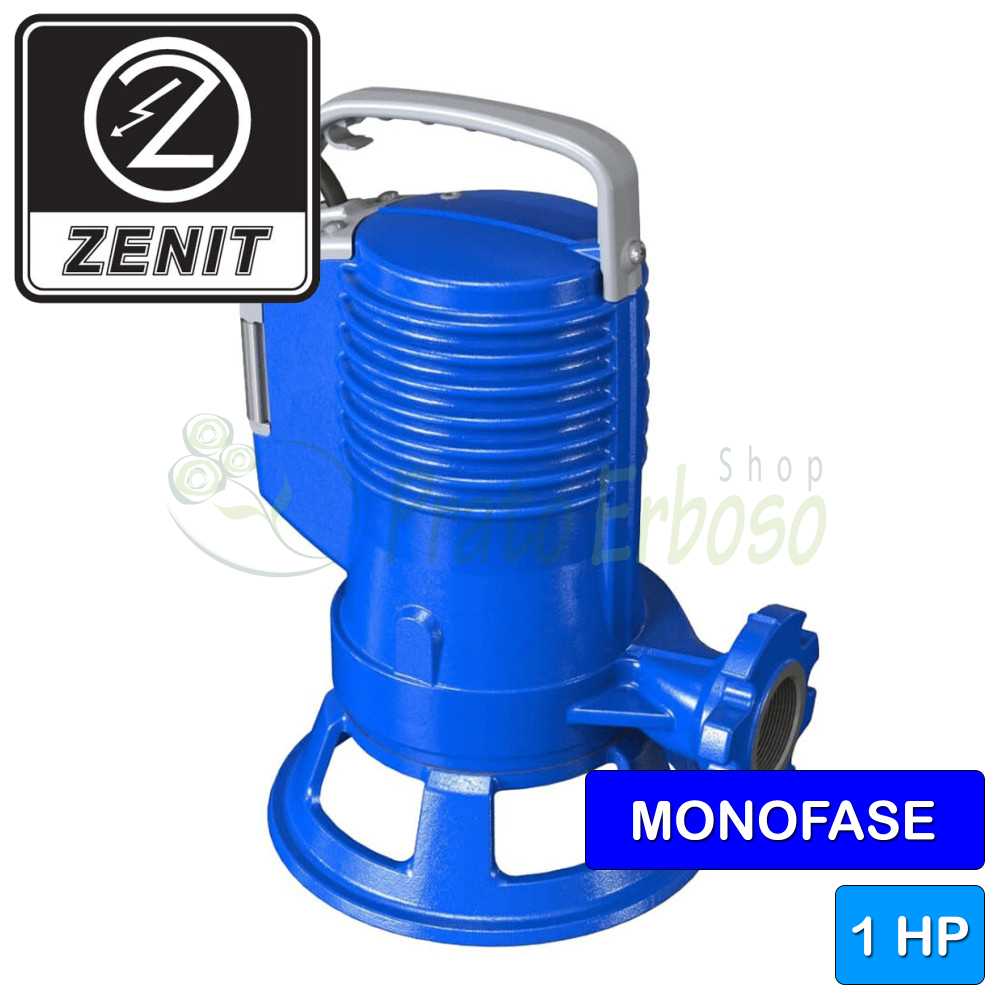

100/2/G40V A1BM5NCQTC - 1 HP single-phase VORTEX electric pump for waste water
Flow rate up to 420 l/min (25.2 m³/h). Head up to 11.4 m. 0.75 Kw (1 HP) motor.
The Zenit DG bluePRO series 100/2/G40V A1BM5NCQTC submersible electric pump is equipped with a vortex impeller. Its special geometry allows the passage of solids.
Useful for heavy-duty use in the presence of contaminated biological liquids, sewage, rainwater and seepage water.
Suitable for use in the domestic and professional sectors.
The Zenit electric pump has a maximum flow rate of 420 litres per minute and a maximum head of 11.4 metres.
Equipped with an induction electric motor with dry winding and thermal protection.
The 100/2/G40V A1BM5NCQTC can be installed up to 20 meters below water level.
The use of cast iron and the double mechanical seal make the pump extremely resistant and suitable even for the most extreme uses.
The cable supplied with the 100/2/G40V A1BM5NCQTC is 5 metres long.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 60
- Max. flow rate (l./min.)
- 420
- Min. head (m.)
- 2.7
- Max. head (m.)
- 11.4
- Cable length (m.)
- 5
- Jobs
- drainage
slightly dirty waters
water supply - Max. liquid temperature (°C)
- 40
- Height (cm)
- 36.5
- Width (cm)
- 26.5
- Depth (cm)
- 19.0
- Weight (Kg)
- 15.5
- Warranty (years)
- 2
