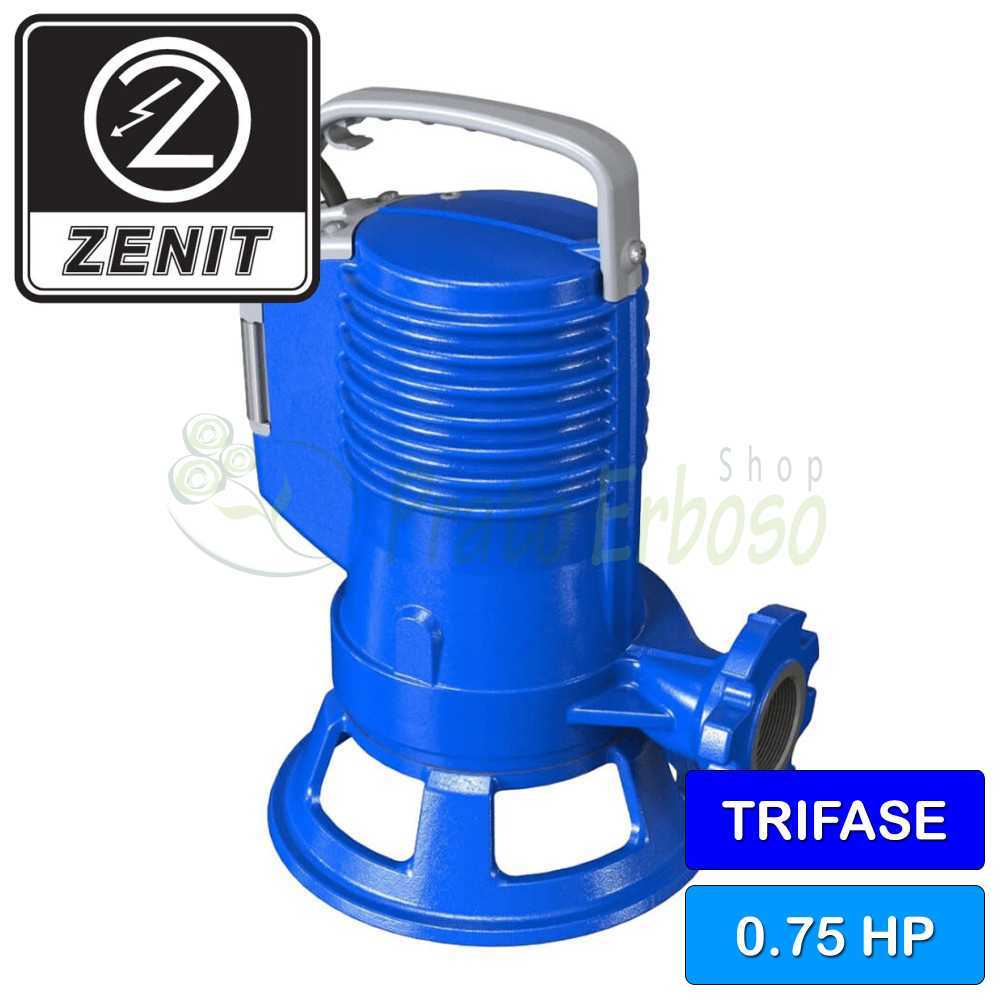

75/2/G40V A1BT5NCQNAE - 0.75 HP three-phase VORTEX electric pump for waste water

Flow rate up to 360 l/min (21.6 m³/h). Head up to 10.2 m. 0.37 kW (0.50 HP) motor.

€492.88 Tax included

404 Tax excluded

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

75/2/G40V A1BT5NCQNAE - 0.75 HP three-phase VORTEX electric pump for waste water
  • Use dot instead of comma

Loading

Description

The Zenit DG bluePRO series 75/2/G40V A1BT5NCQNAE submersible electric pump is suitable for use with soiled biological liquids, sewage, rainwater, and seepage water. In both domestic and industrial applications.

Equipped with a vortex impeller, this allows the pump to filter solids up to 50 millimetres.

It has a maximum flow rate of 360 litres per minute and a maximum head of 10.2 metres.

The 75/2/G40V A1BT5NCQNAE can be installed up to 20 meters underwater. It boasts an IP 68 certification.

The use of materials such as cast iron, stainless steel and the double mechanical seal make this pump solid and robust.

The supplied cable 75/2/G40V A1BT5NCQNAE is 5 metres long.

Data sheet
Brand Pedrollo
Reference 75/2/G40V A1BT5NCQNAE
In stock 50 Items
MPN 1088.003
Motor connection
THREE-PHASE
Power (Kw)
0.55
Power (HP)
0.75
Delivery mouth
1" 1/2
Pump body
Cast iron
Impeller
Cast iron
Crankshaft
AISI 420 stainless steel
Check valve
No
Degree of protection
IP 68
Minimum flow rate (l./min.)
60
Max. flow rate (l./min.)
360
Min. head (m.)
2.6
Max. head (m.)
10.2
Cable length (m.)
5
Jobs
drainage
slightly dirty waters
water supply
Max. liquid temperature (°C)
40
Height (cm)
33.5
Width (cm)
26.5
Depth (cm)
19.0
Weight (Kg)
15
Warranty (years)
2
Attachments

Technical data Blue and BluePro

Construction characteristics, load curves and performance of Zenit Blue and BluePro series pumps.

Download (2.28MB)
