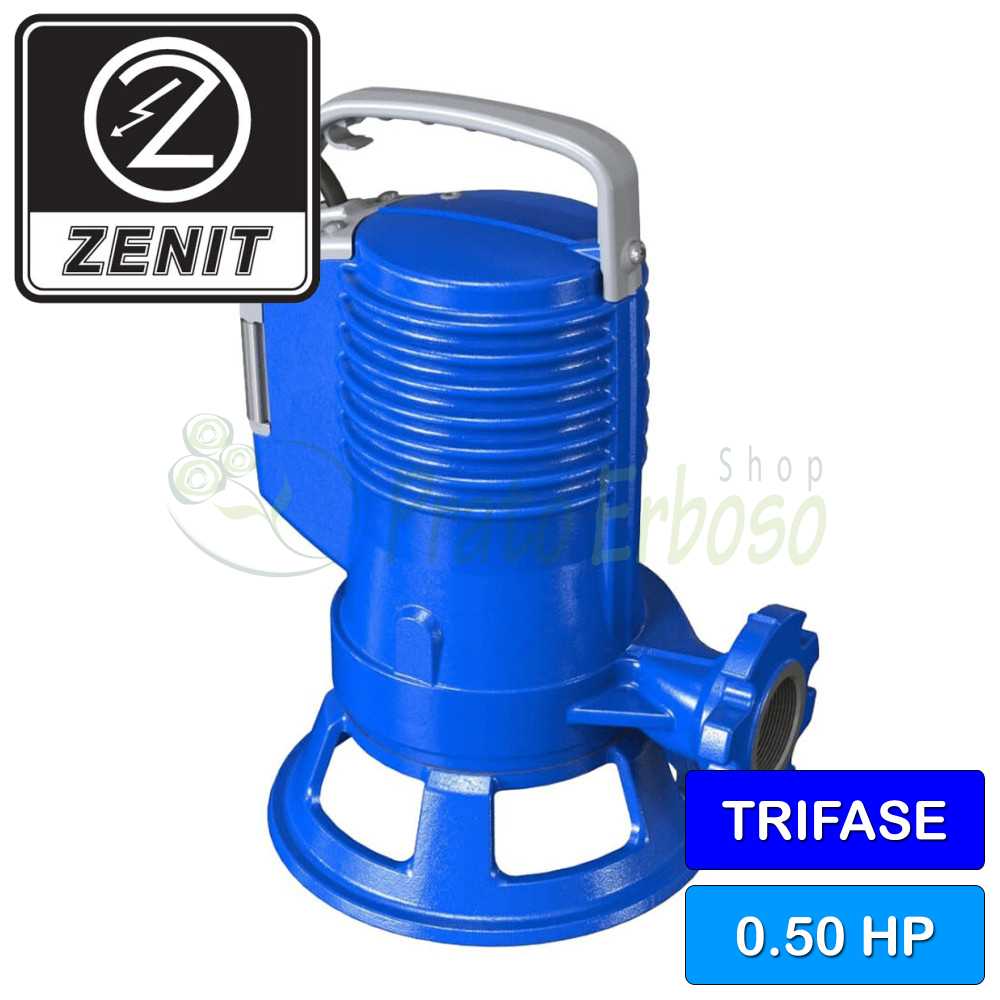

50/2/G40V A1BT5NCQNAE - 0.50 HP three-phase VORTEX electric pump for waste water

Flow rate up to 300 l/min (18.0 m³/h). Head up to 7 m. 0.37 kW (0.50 HP) motor.

€445.06 Tax included

364.8 Tax excluded

€468.48-5%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

50/2/G40V A1BT5NCQNAE - 0.50 HP three-phase VORTEX electric pump for waste water
  • Use dot instead of comma

Loading

Description

The 50/2/G40V A1BT5NCQNAE submersible electric pump from the DG bluePRO series by Zenit is ideal for the domestic and professional sectors.

Suitable for heavy-duty use in the presence of contaminated biological liquids, sewage, rainwater and seepage water.

It has a maximum flow rate of 300 litres per minute and a maximum head of 7 metres.

The distinguishing feature of the 50/2/G40V A1BT5NCQNAE is the vortex impeller which allows the passage of solid bodies.

It can be installed up to 20 meters below water level.

Made from materials such as cast iron and steel, Zenit has created a solid product suitable for even the most extreme conditions.

The cable supplied with the 50/2/G40V A1BT5NCQNAE is 5 meters.

Data sheet
Brand Zenit
Reference 50/2/G40V A1BT5NCQNAE
In stock 50 Items
MPN 1084.003
Motor connection
THREE-PHASE
Power (Kw)
0.37
Power (HP)
0.50
Delivery mouth
1" 1/2
Pump body
Cast iron
Impeller
Cast iron
Crankshaft
AISI 420 stainless steel
Check valve
No
Degree of protection
IP 68
Minimum flow rate (l./min.)
60
Max. flow rate (l./min.)
300
Min. head (m.)
1.1
Max. head (m.)
7.0
Cable length (m.)
5
Jobs
drainage
slightly dirty waters
water supply
Max. liquid temperature (°C)
40
Height (cm)
33.5
Width (cm)
26.5
Depth (cm)
19.0
Weight (Kg)
13
Warranty (years)
2
Attachments

Technical data Blue and BluePro

Construction characteristics, load curves and performance of Zenit Blue and BluePro series pumps.

Download (2.28MB)
