50/2/G40V A1BM5NCQTC - 0.50 HP single-phase VORTEX electric pump for waste water

Flow rate up to 300 l/min (18.0 m³/h). Head up to 7 m. 0.37 kW (0.50 HP) motor.

€440.42 Tax included

361 Tax excluded

€463.60-5%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

50/2/G40V A1BM5NCQTC - 0.50 HP single-phase VORTEX electric pump for waste water
  • Use dot instead of comma

Loading

Description

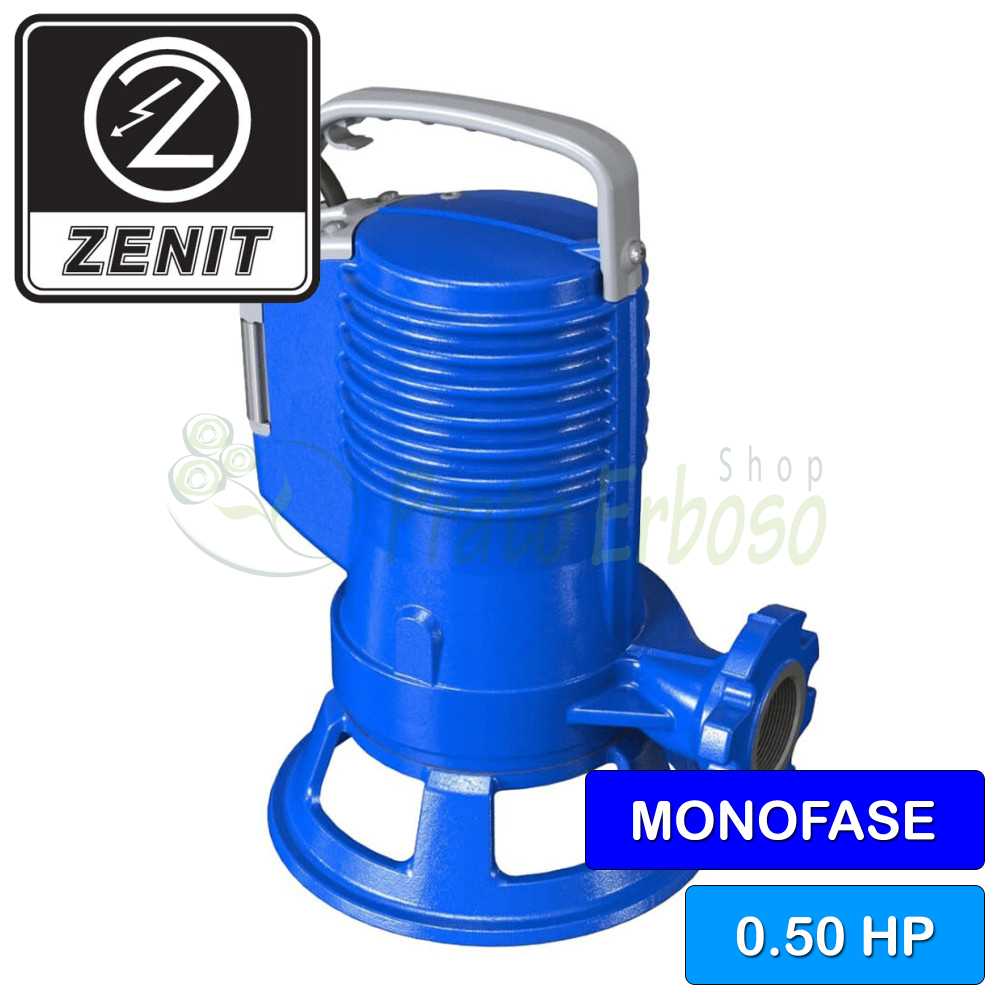

The Zenit DG bluePRO series 50/2/G40V A1BM5NCQTC submersible electric pump is equipped with a vortex impeller. Its special geometry allows the passage of solids.

Useful for heavy-duty use in the presence of contaminated biological liquids, sewage, rainwater and seepage water.

Suitable for use in the domestic and professional sectors.

The Zenit electric pump has a maximum flow rate of 300 litres per minute and a maximum head of 7 metres.

Equipped with an induction electric motor with dry winding and thermal protection.

The 50/2/G40V A1BM5NCQTC can be installed up to 20 meters below water level.

The use of cast iron and the double mechanical seal make the pump extremely resistant and suitable even for the most extreme uses.

The cable supplied with the 50/2/G40V A1BM5NCQTC is 5 meters long.

Data sheet
Brand Zenit
Reference 50/2/G40V A1BM5NCQTC
In stock 50 Items
MPN 1082.004
Motor connection
SINGLE-PHASE
Power (Kw)
0.37
Power (HP)
0.50
Delivery mouth
1" 1/2
Pump body
Cast iron
Impeller
Cast iron
Crankshaft
AISI 420 stainless steel
Check valve
No
Degree of protection
IP 68
Minimum flow rate (l./min.)
60
Max. flow rate (l./min.)
300
Min. head (m.)
1.1
Max. head (m.)
7.0
Cable length (m.)
5
Jobs
drainage
slightly dirty waters
water supply
Max. liquid temperature (°C)
40
Height (cm)
33.5
Width (cm)
26.5
Depth (cm)
19.0
Weight (Kg)
13
Warranty (years)
2
Attachments

Technical data Blue and BluePro

Construction characteristics, load curves and performance of Zenit Blue and BluePro series pumps.

Download (2.28MB)
