copy of UPm 2/3 (10m) - 0.75 HP single-phase submersible electric pump
Flow rate up to 80 l/min (4.8 m³/h). Head up to 48.5 m. 0.55 kW (0.75 HP) motor. 10-meter cable.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 18 June - Friday 19 June |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 18 June - Friday 19 June |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 18 June - Friday 19 June
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 18 June - Friday 19 June

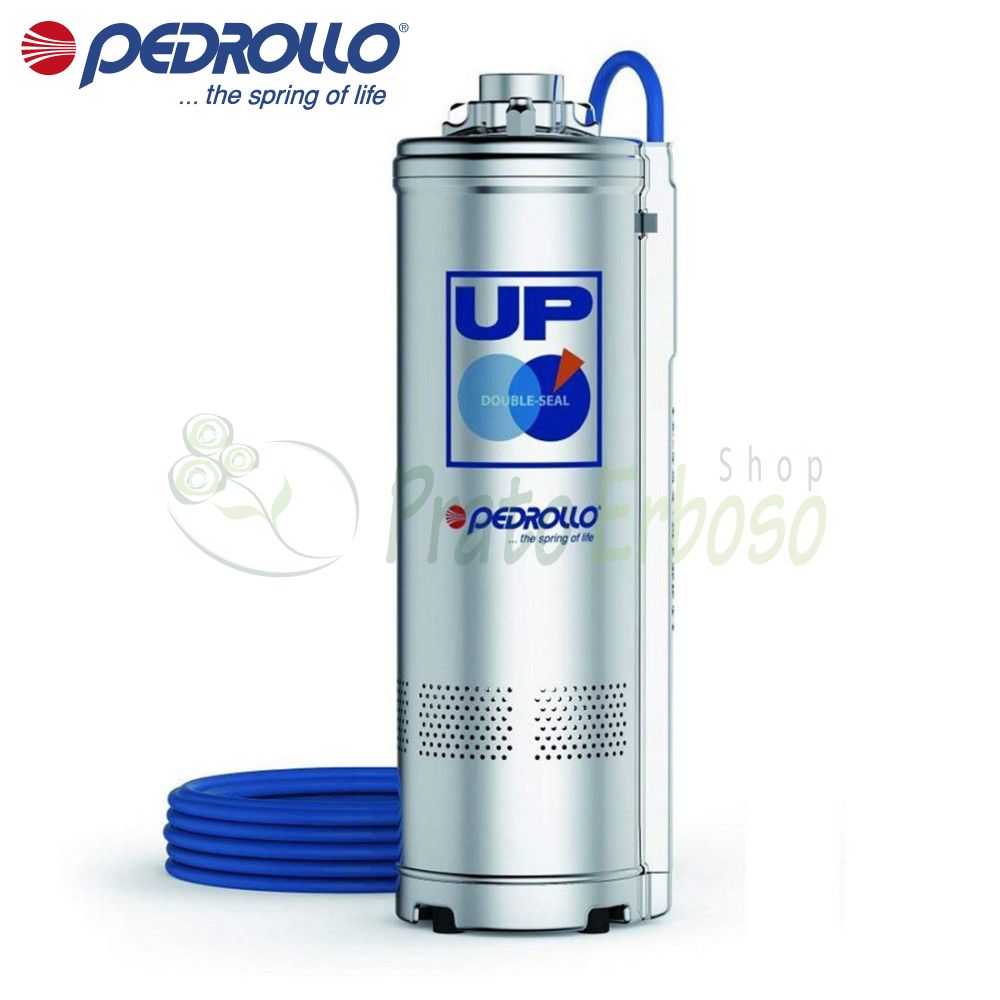

The UPm 2/3 submersible electric pump from the UP series by Pedrollo is recommended for installations in the domestic, civil and agricultural sectors.
It stands out for its reliability, thanks to the technical solutions employed the electric pump does not lock out even after long sessions of inactivity.
It sustains high performance without any failure even after long working sessions.

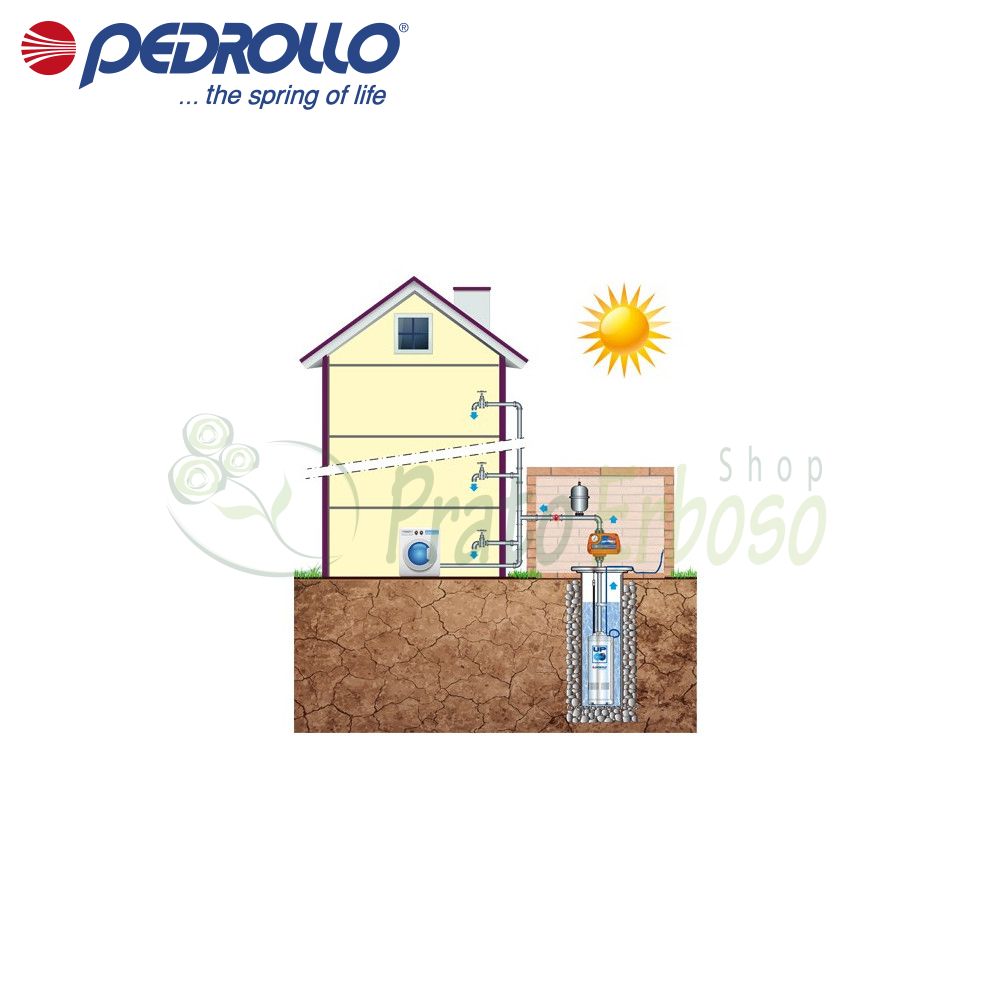

The UPm 2/3 can be used in particular for water distribution in conjunction with pressure tanks, for irrigation of vegetable gardens and gardens and for pressure boosting.
It has a power of 0.75 HP. The flow rate varies from 10 to 80 liters per minute while the head varies from 24 to 48.5 meters.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 5.4
- Capacitor
- 16 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 3
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 24
- Max. head (m.)
- 48.5
- Cable length (m.)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 42.5
- External diameter (cm)
- 15
- Weight (Kg)
- 13.1
- Warranty (years)
- 2
